Product size diagram
Product size and properties
| Model Number | H  | L2 | L1 | Handle Diameter D | Length L | Weight（kg） | Material | F | E | D1 | T | M | L3 | C | K | A | B | Tmin | R |

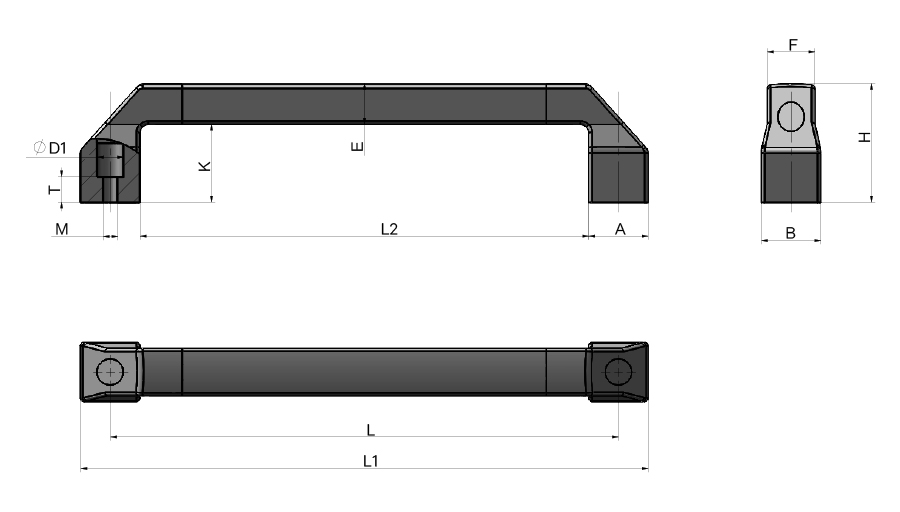

3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L69-D19-300-B | 70 | 265 | 335 | 19 | 300 | / | Aluminum Alloy | / | / | 15 | 15 | 8.5 | / | / | 46 | 35 | 35 | / | / |
 |
| L69-D19-300-W | 70 | 265 | 335 | 19 | 300 | / | Aluminum Alloy | / | / | 15 | 15 | 8.5 | / | / | 46 | 35 | 35 | / | / |
|
| L69-D19-400-B | 70 | 365 | 435 | 19 | 400 | / | Aluminum Alloy | / | / | 15 | 15 | 8.5 | / | / | 46 | 35 | 35 | / | / | |
| L69-D19-400-W | 70 | 365 | 435 | 19 | 400 | / | Aluminum Alloy | / | / | 15 | 15 | 8.5 | / | / | 46 | 35 | 35 | / | / | |
| L69-D19-500-B | 70 | 465 | 535 | 19 | 500 | / | Aluminum Alloy | / | / | 15 | 15 | 8.5 | / | / | 46 | 35 | 35 | / | / | |
| L69-D19-500-W | 70 | 465 | 535 | 19 | 500 | / | Aluminum Alloy | / | / | 15 | 15 | 8.5 | / | / | 46 | 35 | 35 | / | / |
characteristic
Tubular handle
Foot: glass fiber reinforced polyamide (PA)
Cover plate: Polycarbonate (PC)
Optional colors: black, red, white,blue
W type:Aluminum alloy, anodized, silver white, matte finish; Foot, black, matte finish
B type:Aluminum alloy, anodized, black, matte finish; Foot, black, matte finish
