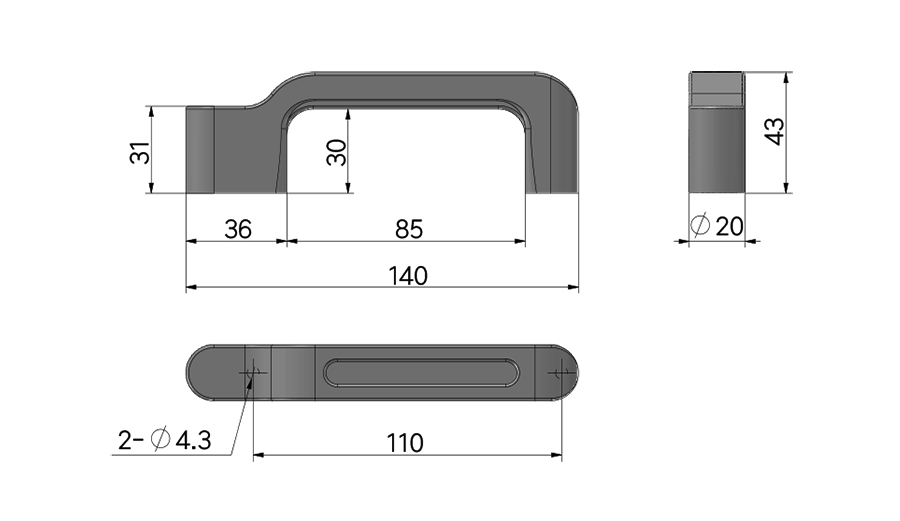

Product size diagram
Product size and properties
| Model Number | H  | L2 | L1 | Handle Diameter D | Length L | Weight（kg） | Material | F | E | D1 | T | M | L3 | C | K | A | B | Tmin | R |
3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L84 | / | / | / | / | 140 | / | Engineering Plastic | / | / | / | / | / | / | / | / | / | / | / | / |
 |
characteristic
Installation: Support feet with φ 4.4 through-hole, fixed with self tapping screws
Comfortable grip, firm and stable
Comfortable grip, firm and stable
Available services
1. Ultrasonic cleaning and dust-free packaging 2.Laser cutting Logo
Product Name
U handle
U handle
