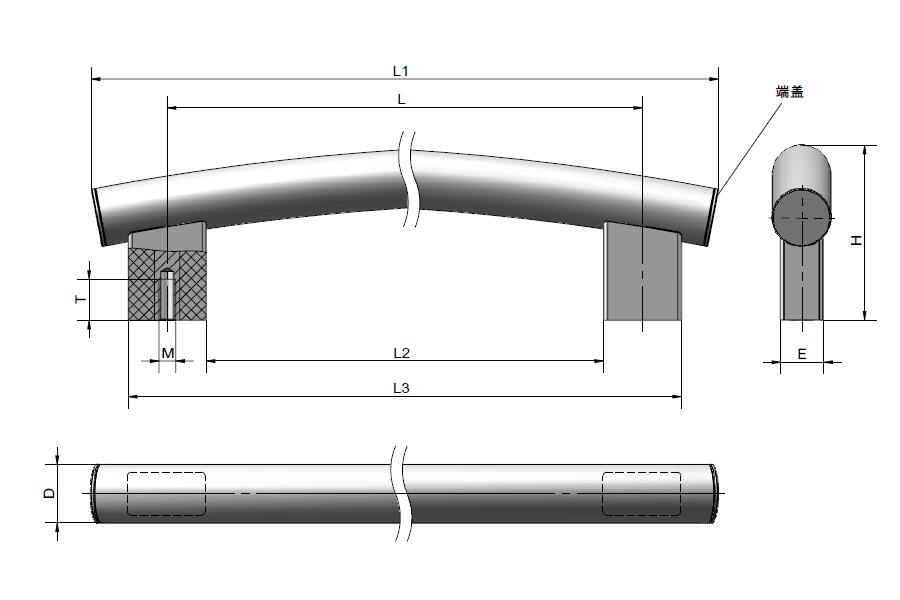

Product size diagram
Product size and properties
| Model Number | H  | L2 | L1 | Handle Diameter D | Length L | Weight（kg） | Material | F | E | D1 | T | M | L3 | C | K | A | B | Tmin | R |
3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L21-400-D30-M8-W | 90 | 360 | 480 | 30 | 400 | / | Aluminum Alloy | / | 22 | / | 16 | M8 | 440 | / | / | / | / | / | / |
 |
| L21-400-D30-M8-B | 90 | 360 | 480 | 30 | 400 | / | Aluminum Alloy | / | 22 | / | 16 | M8 | 440 | / | / | / | / | / | / |
|
| L21-400-D30-M8-S | 90 | 360 | 480 | 30 | 400 | / | SUS304 | / | 22 | / | 16 | M8 | 440 | / | / | / | / | / | / |
|
| L21-500-D30-M8-W | 94 | 460 | 580 | 30 | 500 | / | Aluminum Alloy | / | 22 | / | 16 | M8 | 540 | / | / | / | / | / | / | |
| L21-500-D30-M8-B | 94 | 460 | 580 | 30 | 500 | / | Aluminum Alloy | / | 22 | / | 16 | M8 | 540 | / | / | / | / | / | / | |
| L21-500-D30-M8-S | 94 | 460 | 580 | 30 | 500 | / | SUS304 | / | 22 | / | 16 | M8 | 540 | / | / | / | / | / | / | |
| L21-600-D30-M8-W | 98 | 560 | 680 | 30 | 600 | / | Aluminum Alloy | / | 22 | / | 16 | M8 | 640 | / | / | / | / | / | / |
|
| L21-600-D30-M8-B | 98 | 560 | 680 | 30 | 600 | / | Aluminum Alloy | / | 22 | / | 16 | M8 | 640 | / | / | / | / | / | / |
|
| L21-600-D30-M8-S | 98 | 560 | 680 | 30 | 600 | / | SUS304 | / | 22 | / | 16 | M8 | 640 | / | / | / | / | / | / |
|
characteristic

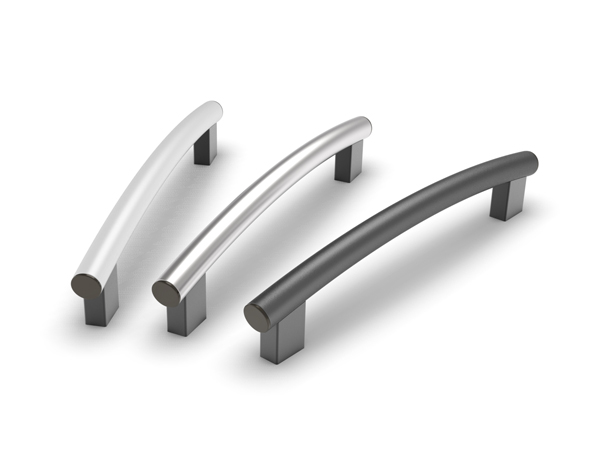

Fashionablearc-shaped handle
W type: tube body anodized, silver, matte finish; Foot :black , matte finish
Type B: black body, black foot, matte finish
Type S :Stainless steel tube body, sanded finish, shiny finish, black foot, matte finish
Tube end cover: polyamide (PA),black matte finish
Installation: pin with threaded blind hole
Available services
1. Non-standard, Length can be customized; 2. Optional screws; 3. Ultrasonic cleaning and dust-free packaging 4.Laser cutting Logo
