| Model Number | H  | L2 | L1 | Handle Diameter D | Length L | Weight（kg） | Material | F | E | D1 | T | M | L3 | C | K | A | B | Tmin | R |

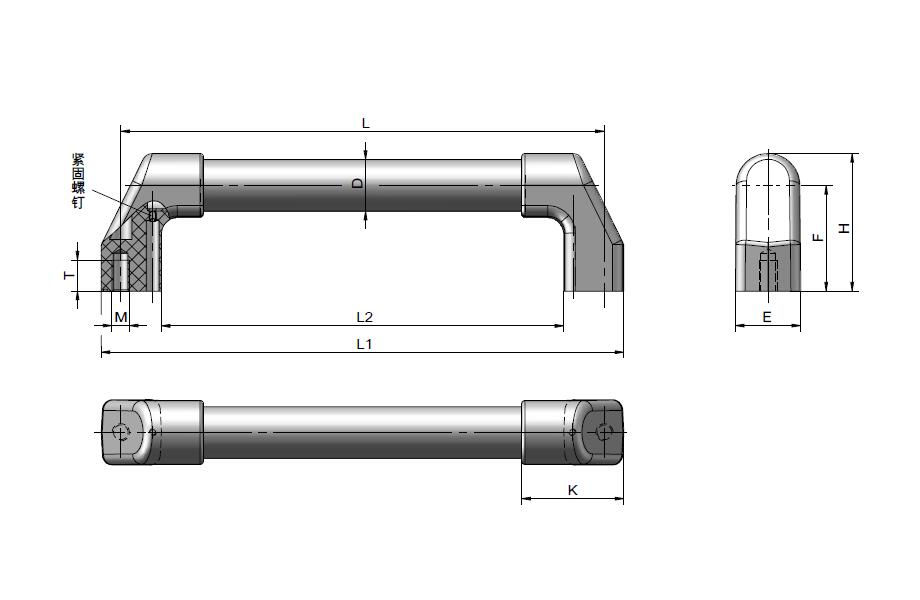

3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L28-300-D30-W | 78 | 254 | 324 | 30 | 300 | / | Aluminum Alloy | 60 | 38 | / | 20 | M10 | / | / | 57 | / | / | / | / |
 |
| L28-300-D30-B | 78 | 254 | 324 | 30 | 300 | / | Aluminum Alloy | 60 | 38 | / | 20 | M10 | / | / | 57 | / | / | / | / |
|
| L28-300-D30-S | 78 | 254 | 324 | 30 | 300 | / | SUS304 | 60 | 38 | / | 20 | M10 | / | / | 57 | / | / | / | / |
|
| L28-350-D30-W | 78 | 304 | 374 | 30 | 350 | / | Aluminum Alloy | 60 | 38 | / | 20 | M10 | / | / | 57 | / | / | / | / | |
| L28-350-D30-B | 78 | 304 | 374 | 30 | 350 | / | Aluminum Alloy | 60 | 38 | / | 20 | M10 | / | / | 57 | / | / | / | / | |
| L28-350-D30-S | 78 | 304 | 374 | 30 | 350 | / | SUS304 | 60 | 38 | / | 20 | M10 | / | / | 57 | / | / | / | / | |
| L28-400-D30-W | 78 | 354 | 424 | 30 | 400 | / | Aluminum Alloy | 60 | 38 | / | 20 | M10 | / | / | 57 | / | / | / | / | |
| L28-400-D30-B | 78 | 354 | 424 | 30 | 400 | 0.364 | Aluminum Alloy | 60 | 38 | / | 20 | M10 | / | / | 57 | / | / | / | / | |
| L28-400-D30-S | 78 | 354 | 424 | 30 | 400 | / | SUS304 | 60 | 38 | / | 20 | M10 | / | / | 57 | / | / | / | / | |
| L28-500-D30-W | 78 | 454 | 524 | 30 | 500 | / | Aluminum Alloy | 60 | 38 | / | 20 | M10 | / | / | 57 | / | / | / | / | |
| L28-500-D30-B | 78 | 454 | 524 | 30 | 500 | / | Aluminum Alloy | 60 | 38 | / | 20 | M10 | / | / | 57 | / | / | / | / | |
| L28-500-D30-S | 78 | 454 | 524 | 30 | 500 | / | SUS304 | 60 | 38 | / | 20 | M10 | / | / | 57 | / | / | / | / | |
| L28-600-D30-W | 78 | 554 | 624 | 30 | 600 | / | Aluminum Alloy | 60 | 38 | / | 20 | M10 | / | / | 57 | / | / | / | / |
|
| L28-600-D30-B | 78 | 554 | 624 | 30 | 600 | / | Aluminum Alloy | 60 | 38 | / | 20 | M10 | / | / | 57 | / | / | / | / |
|
| L28-600-D30-S | 78 | 554 | 624 | 30 | 600 | / | SUS304 | 60 | 38 | / | 20 | M10 | / | / | 57 | / | / | / | / |
|
| L28-700-D30-W | 78 | 654 | 724 | 30 | 700 | / | Aluminum Alloy | 60 | 38 | / | 20 | M10 | / | / | 57 | / | / | / | / | |
| L28-700-D30-B | 78 | 654 | 724 | 30 | 700 | / | Aluminum Alloy | 60 | 38 | / | 20 | M10 | / | / | 57 | / | / | / | / | |
| L28-700-D30-S | 78 | 654 | 724 | 30 | 700 | / | SUS304 | 60 | 38 | / | 20 | M10 | / | / | 57 | / | / | / | / |

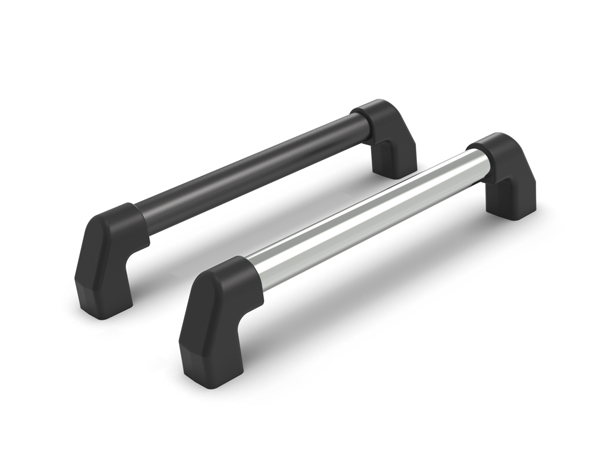

Tubular handle
Foot: glass fiber reinforced polyamide (PA)
W type:Aluminum alloy, anodized, silver white, matte finish; Foot, black, matte finish
B type: Aluminum alloy, anodized, black, matt finish; Foot, black, matt finish
S type: SUS304 stainless steel, bright finish; Foot, black, matte finish
The pipe body is connected to the supporting foot through the groove to avoid the rotation of the pipe body.Stable and firm, with fastening screw to tighten the pipe body
1. Non-standard, Length can be customized; 2. Optional screws; 3. Ultrasonic cleaning and dust-free packaging 4.Laser cutting Logo
Handle
