Handle

L32

Handle

Hard aluminum anodized tube body

application:Engineering vehicles, CNC machine tools, testing instruments

catalogue CAD data

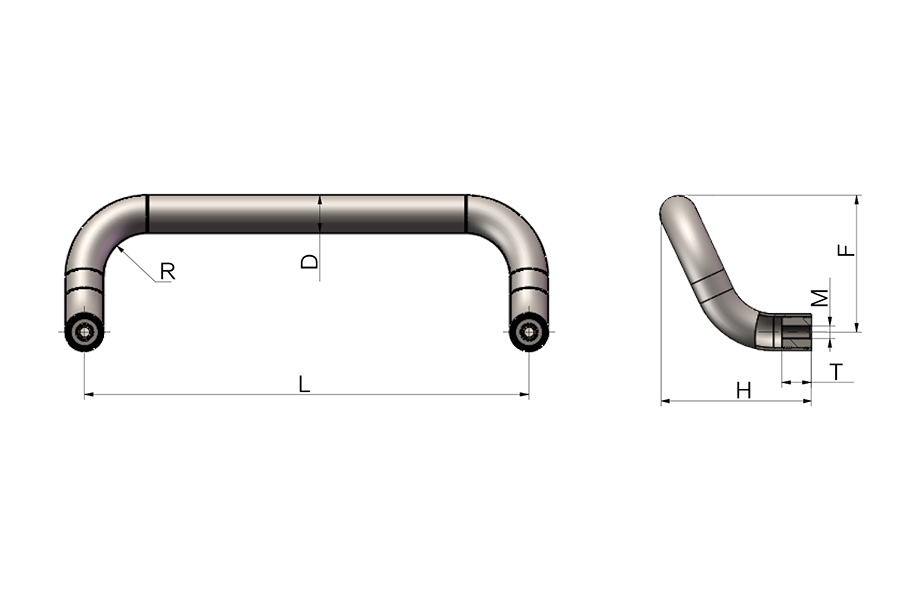

Product size diagram
Product size and properties
Model Number H bottomL2 bottomL1 bottomHandle Diameter D bottomLength L bottomWeight(kg) bottomMaterial F bottomE bottomD1 bottomT bottomM bottomL3 bottomC bottomK bottomA bottomB bottomTmin bottomR bottom 3D DRAWINGS
L32-300-28-W 63 / 340 / 300 / Aluminum Alloy 12 28 / 18 M8 / / / / 18 / /
L32-300-28-B 63 / 340 / 300 / Aluminum Alloy 12 28 / 18 M8 / / / / 18 / /
L32-400-28-W 63 / 440 / 400 / Aluminum Alloy 12 28 / 18 M8 / / / / 18 / /
L32-400-28-B 63 / 440 / 400 / Aluminum Alloy 12 28 / 18 M8 / / / / 18 / /
L32-400-36-W 71 / 455 / 400 / Aluminum Alloy 16.5 36 / 23.5 M10 / / / / 26 / /
L32-400-36-B 71 / 455 / 400 / Aluminum Alloy 16.5 36 / 23.5 M10 / / / / 26 / /
L32-500-36-W 71 / 555 / 500 / Aluminum Alloy 16.5 36 / 23.5 M10 / / / / 26 / /
L32-500-36-B 71 / 555 / 500 / Aluminum Alloy 16.5 36 / 23.5 M10 / / / / 26 / /
L32-600-36-W 71 / 655 / 600 / Aluminum Alloy 16.5 36 / 23.5 M10 / / / / 26 / /
L32-600-36-B 71 / 655 / 600 / Aluminum Alloy 16.5 36 / 23.5 M10 / / / / 26 / /
L32-800-36-W 71 / 855 / 800 / Aluminum Alloy 16.5 36 / 23.5 M10 / / / / 26 / /
L32-800-36-B 71 / 855 / 800 / Aluminum Alloy 16.5 36 / 23.5 M10 / / / / 26 / /
characteristic

Bent handle:

W type: tube body anodized, silver, matte finish;

B type: black body,  matte finish

Installation: with a through hole for hexagon screwsUnique oval handle shape, fashionable and beautiful, comfortable grip, firm and stable

Available services

1. Non-standard, Length can be customized; 2. Optional screws; 3. Ultrasonic cleaning and dust-free packaging 4.Laser cutting Logo
