Fixing Flange Index Plunger

S12

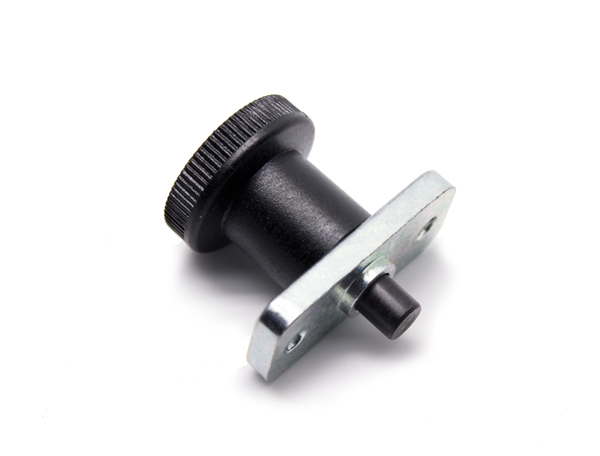

Fixing Flange Index Plunger

Carbon Steel

application:General Equipment, fitness machinery, fixtures

catalogue CAD data

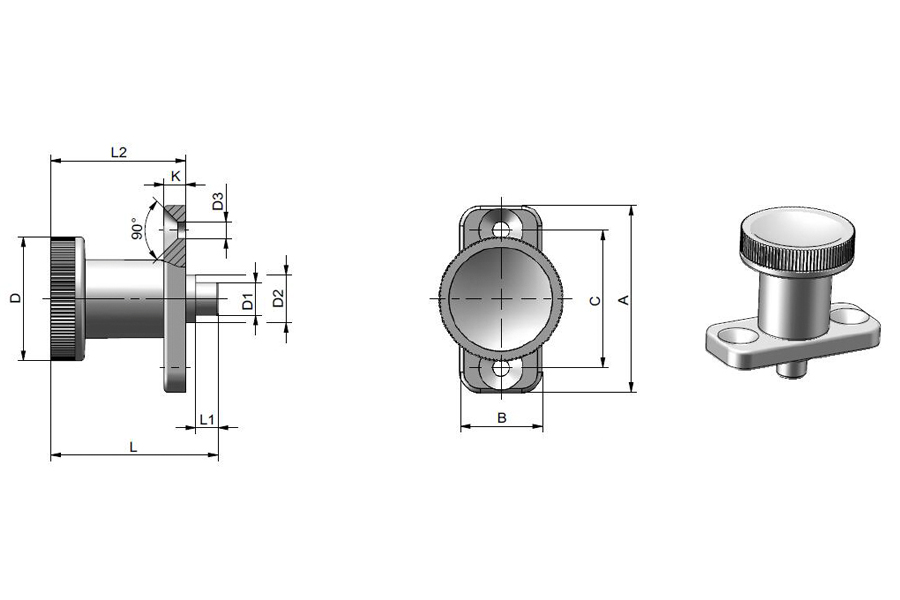

Product size diagram


Product size and properties
Model Number Material bottomD1 bottomLength L bottomHandle Diameter D bottomL1 bottomL2 bottomF bottomT bottomM bottomK bottomD2 bottomS bottomHeight bottomS1 S2 bottomT1 bottomM1 bottomC bottomA bottomD3 bottomB bottomMaximum load (N) bottomWeight (g) bottom 3D DRAWINGS
S12-8-B Carbon Steel 12 44 31 8 33.5 / / / 5.5 / / / / / / / 34 46 10.4 20 30 60
S12-6-B Carbon Steel 10 37 25 6 28.5 / / / 4.5 / / / / / / / 30 40 8.3 18 20 35
characteristic

Zinc casting zinc alloy.

Black oxidation treatment.

Hardening treatment pin. Suggest to cooperate with H7 tolerance holes.Suitable for the installation of metal sheet

Push / pull knurled handle,high elasticity. Polyamide (PA),black,matte finish

Available services

1. Non-standard, Length can be customized; 2. Optional screws; 3. Ultrasonic cleaning and dust-free packaging.
