Horizontal Quick Clamp

225-DSM

Horizontal Quick Clamp

Zinc plated

application:Vehicle manufacturing, welding fixtures, assembly fixtures, testing fixtures, etc

catalogue CAD data

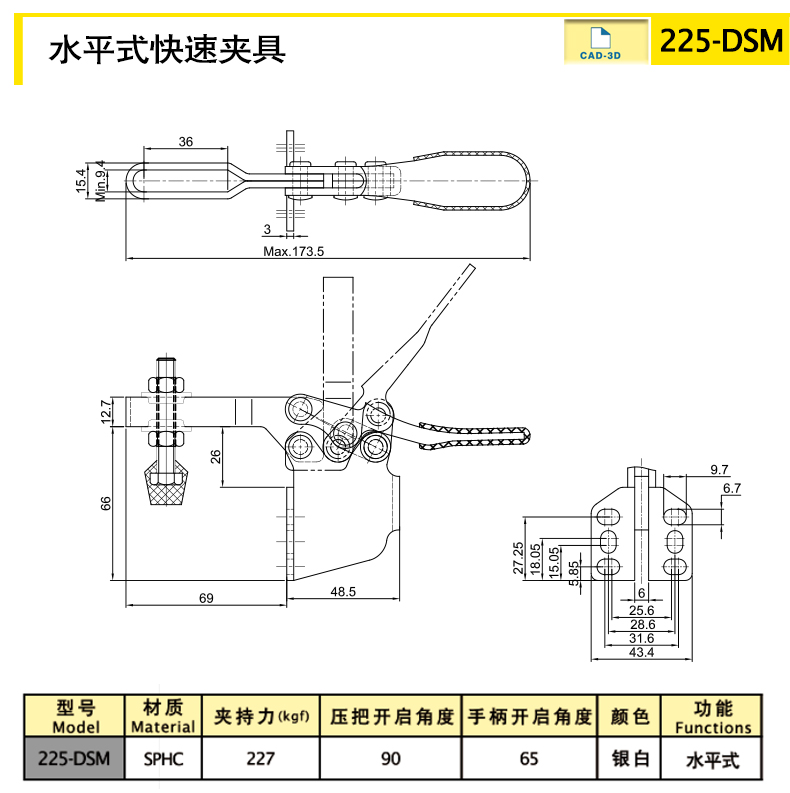

Product size diagram
Product size and properties
Model Number Weight(kg) bottomMax Attraction(kg) bottomDimensions(mm) bottomColor bottomMaterial bottomWidth of jaw(mm) bottomOpening length(mm) bottomClamping height(mm) bottomMax Clampping Force(kg) bottomClamping Force(kg) bottomFunction bottom 3D DRAWINGS
225-DSM / / / Silver SPHC / / / / / Horizontal
characteristic
A fast clamping, quick opening mechanism designed using the principle of mechanical four-link rod, flexible and smooth, without swaying.
