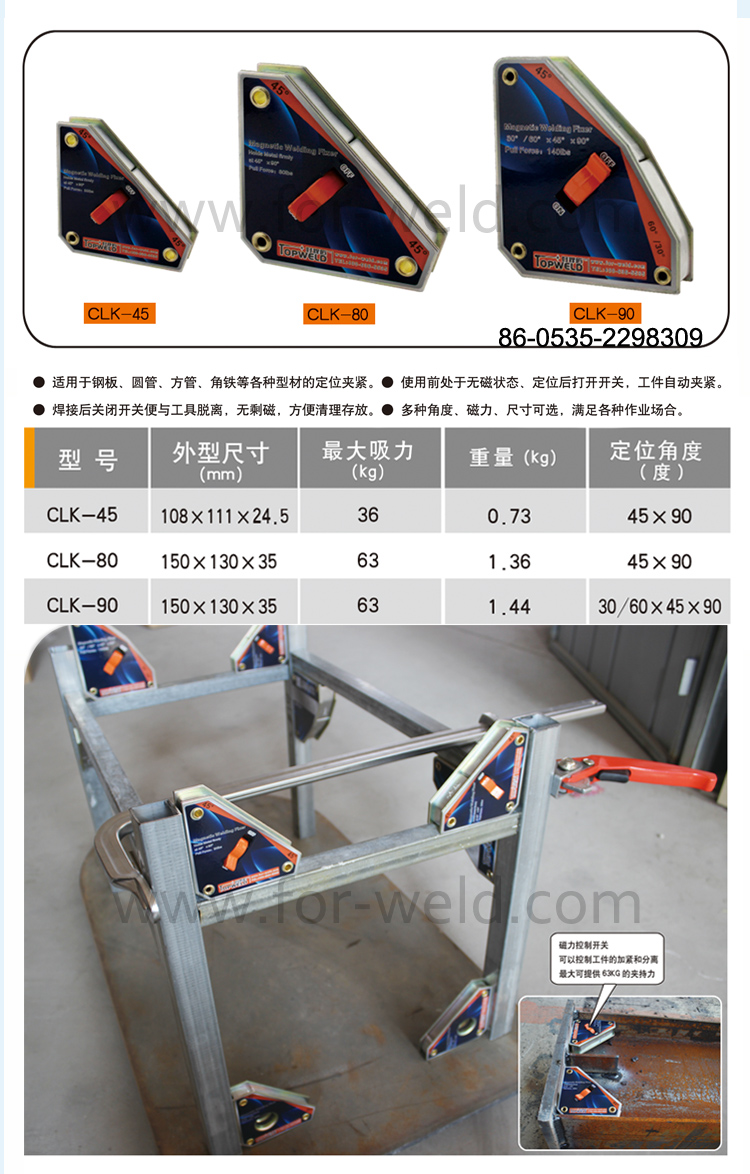

Single-Switch Magnetic Welding Fixer

CLK Series

Single-Switch Magnetic Welding Fixer

application:Industrial

catalogue CAD data

Product size diagram
Product size and properties
Model Number Weight(kg) bottomMax Attraction(kg) bottomDimensions(mm) bottomColor bottomMaterial bottomWidth of jaw(mm) bottomOpening length(mm) bottomClamping height(mm) bottomMax Clampping Force(kg) bottomClamping Force(kg) bottomFunction bottom 3D DRAWINGS
CLK-45 0.715 36 108*111*24.5 / / / / / / / Angle positioning
CLK-80 1.36 63 150*130*35 / / / / / / / Angle positioning
CLK-90 1.44 63 150*130*35 / / / / / / / Angle positioning
characteristic

Non-magnetic before use,turn the magnet switch on after set-up,then ready to work

Multiple angles,magnetic force,size are optional for metal-working

Available services

Ideal for steel plate,circular and square tube,angle iron.

Turn the magnet switch off after welding,easy to clean and store
