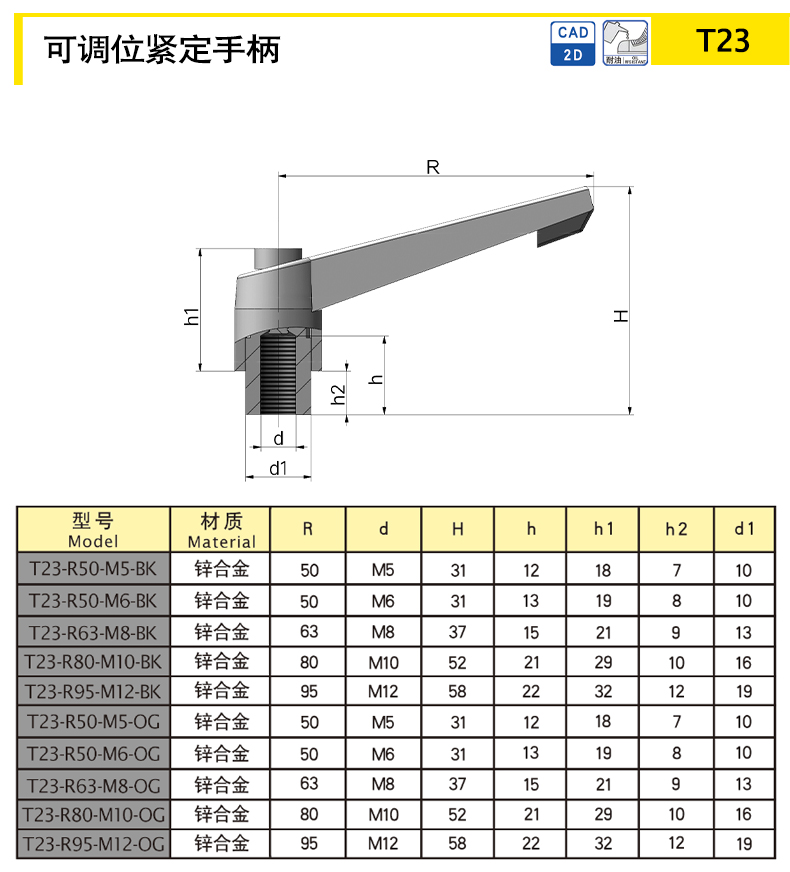

Product size diagram
Product size and properties
| Model Number | Material  | Diameter | Length L | D1 | M | T | D2 | T1 | F | Height | B | E | Feature | L1 | Weight (g) | h | d | S | L2 | D3 | 3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T23-R50-M5-BK | Zinc Alloy | 50 | / | / | / | / | / | / | / | 31 | / | / | / | / | / | 12 | M5 | / | / | / | |
| T23-R50-M6-BK | Zinc Alloy | 50 | / | / | / | / | / | / | / | 31 | / | / | / | / | / | 13 | M6 | / | / | / | |
| T23-R63-M8-BK | Zinc Alloy | 63 | / | / | / | / | / | / | / | 37 | / | / | / | / | / | 15 | M8 | / | / | / | |
| T23-R80-M10-BK | Zinc Alloy | 80 | / | / | / | / | / | / | / | 52 | / | / | / | / | / | 21 | M10 | / | / | / | |
| T23-R95-M12-BK | Zinc Alloy | 95 | / | / | / | / | / | / | / | 58 | / | / | / | / | / | 22 | M12 | / | / | / | |
| T23-R50-M5-OG | Zinc Alloy | 50 | / | / | / | / | / | / | / | 31 | / | / | / | / | / | 12 | M5 | / | / | / | |
| T23-R50-M6-OG | Zinc Alloy | 50 | / | / | / | / | / | / | / | 31 | / | / | / | / | / | 13 | M6 | / | / | / | |
| T23-R63-M8-OG | Zinc Alloy | 63 | / | / | / | / | / | / | / | 37 | / | / | / | / | / | 15 | M8 | / | / | / | |
| T23-R80-M10-OG | Zinc Alloy | 80 | / | / | / | / | / | / | / | 52 | / | / | / | / | / | 21 | M10 | / | / | / | |
| T23-R95-M12-OG | Zinc Alloy | 95 | / | / | / | / | / | / | / | 58 | / | / | / | / | / | 22 | M12 | / | / | / |
characteristic
Suit every requirement of different applications.The hand levers can be altered to perfectly attach against a confined space in any lever position .It can be easily fixed or removed.
Available services
Product Name
Clamping Levers
Clamping Levers
More information
If you have more technical advice，Please call0535-6217008-801
