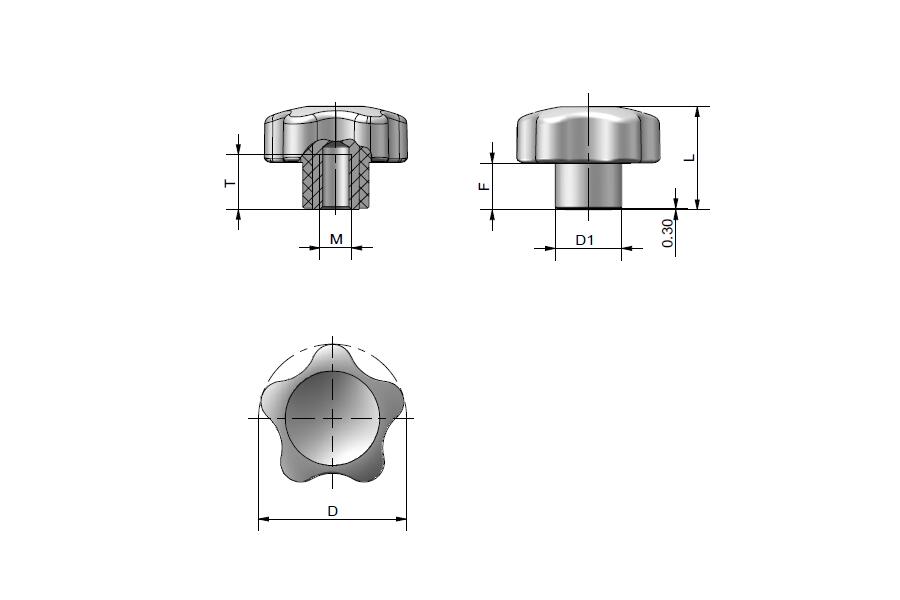

Product size diagram
Product size and properties
| Model Number | Material  | Diameter | Length L | D1 | M | T | D2 | T1 | F | Height | B | E | Feature | L1 | Weight (g) | h | d | S | L2 | D3 | 3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T83-32-M5 | Polyamide (PA) | 32 | 20 | 12 | M5 | 10 | / | / | 11 | / | / | / | Nut | / | / | / | / | / | / | / | |
| T83-32-M6 | Polyamide (PA) | 32 | 20 | 12 | M6 | 10 | / | / | 11 | / | / | / | Nut | / | / | / | / | / | / | / | |
| T83-40-M6 | Polyamide (PA) | 40 | 26 | 15 | M6 | 12 | / | / | 14 | / | / | / | Nut | / | / | / | / | / | / | / |
 |
| T83-40-M8 | Polyamide (PA) | 40 | 26 | 15 | M8 | 12 | / | / | 14 | / | / | / | Nut | / | / | / | / | / | / | / | |
| T83-50-M8 | Polyamide (PA) | 50 | 31.5 | 19 | M8 | 14 | / | / | 17.5 | / | / | / | Nut | / | / | / | / | / | / | / | |
| T83-50-M10 | Polyamide (PA) | 50 | 31.5 | 19 | M10 | 16 | / | / | 17.5 | / | / | / | Nut | / | / | / | / | / | / | / | |
| T83-60-M10 | Polyamide (PA) | 60 | 38 | 22.5 | M10 | 20 | / | / | 21 | / | / | / | Nut | / | / | / | / | / | / | / | |
| T83-60-M12 | Polyamide (PA) | 60 | 38 | 22.5 | M12 | 20 | / | / | 21 | / | / | / | Nut | / | / | / | / | / | / | / |
characteristic
Black, matte finish
Copper hub, threaded blind hole
Grip properly, for parts and equipment that must be cleaned frequently
Prevent residue accumulation, easy to clean
Available services
1. Non-standard, Length can be customized; 2. Optional screws; 3. Ultrasonic cleaning and dust-free packaging
Product Name

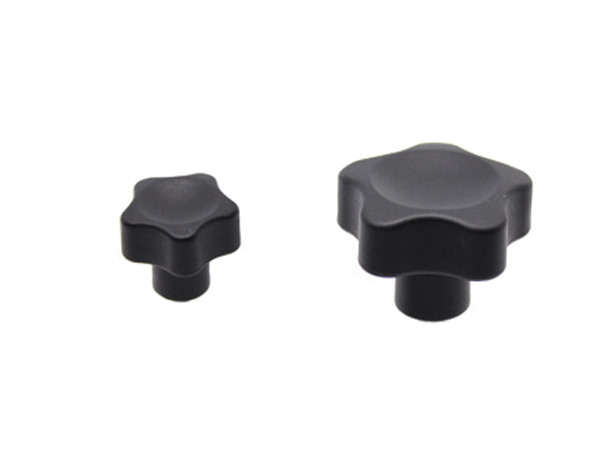

Five Star Nut Knob
Five Star Nut Knob
