| Model Number | Material  | Diameter | Length L | D1 | M | T | D2 | T1 | F | Height | B | E | Feature | L1 | Weight (g) | h | d | S | L2 | D3 | 3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T52-32-M6-S | SUS304 | 32 | 21 | / | M6 | 12 | / | / | 12 | / | / | / | Nut | / | 40 | / | / | / | / | / | |
| T52-32-M6-M | SUS304 | 32 | 21 | / | M6 | 12 | / | / | 12 | / | / | / | Nut | / | 40 | / | / | / | / | / | |
| T52-40-M8-S | SUS304 | 40 | 25 | / | M8 | 15 | / | / | 13.6 | / | / | / | Nut | / | 57 | / | / | / | / | / |
 |
| T52-40-M8-M | SUS304 | 40 | 25 | / | M8 | 15 | / | / | 13.6 | / | / | / | Nut | / | 57 | / | / | / | / | / |
|
| T52-50-M10-S | SUS304 | 50 | 31 | / | M10 | 18 | / | / | 17 | / | / | / | Nut | / | 111 | / | / | / | / | / | |
| T52-50-M10-M | SUS304 | 50 | 31 | / | M10 | 18 | / | / | 17 | / | / | / | Nut | / | 111 | / | / | / | / | / | |
| T52-60-M12-S | SUS304 | 60 | 37.5 | / | M12 | 22 | / | / | 20 | / | / | / | Nut | / | 192 | / | / | / | / | / | |
| T52-60-M12-M | SUS304 | 60 | 37.5 | / | M12 | 22 | / | / | 20 | / | / | / | Nut | / | 192 | / | / | / | / | / |
SUS304 stainless steel precision casting, matte finish
Type M: bright finish (mirror)
Type S: matt finish (sandblasting)
Assembly:
Type D: with threaded hole
Type C: threaded through hole
Type B: with standard H7 hinge blind hole
Stainless steels are resistant to corrosion and may be required by law to be used under special sanitary climate and environmental conditions
1. Non-standard, Length can be customized; 2. Optional screws; 3. Ultrasonic cleaning and dust-free packaging

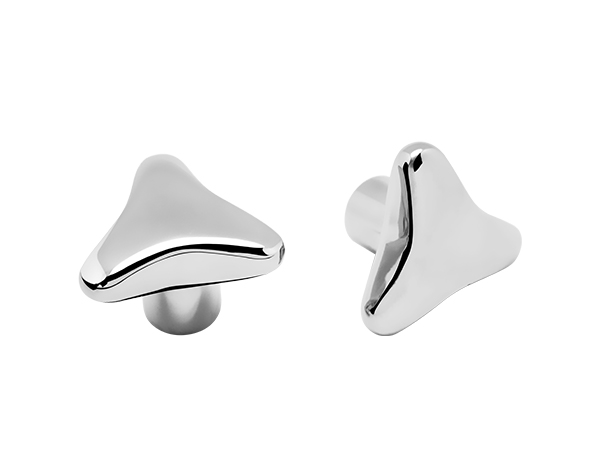

Three Star Nut Knob
