| Model Number | Material  | Diameter | Length L | D1 | M | T | D2 | T1 | F | Height | B | E | Feature | L1 | Weight (g) | h | d | S | L2 | D3 | 3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T56-40-M8-M | SUS304 | 40 | 25 | / | M8 | 15 | / | / | 14 | / | / | / | Nut | / | 50 | / | / | / | / | / | |
| T56-40-M8-S | SUS304 | 40 | 25 | / | M8 | 15 | / | / | 14 | / | / | / | Nut | / | 50 | / | / | / | / | / | |
| T56-50-M10-M | SUS304 | 50 | 29 | / | M10 | 18 | / | / | 15 | / | / | / | Nut | / | 84 | / | / | / | / | / |
 |
| T56-50-M10-S | SUS304 | 50 | 29 | / | M10 | 18 | / | / | 15 | / | / | / | Nut | / | 84 | / | / | / | / | / |
|
| T56-63-M12-M | SUS304 | 63 | 35 | / | M12 | 22 | / | / | 18 | / | / | / | Nut | / | 160 | / | / | / | / | / |
|
| T56-63-M12-S | SUS304 | 63 | 35 | / | M12 | 22 | / | / | 18 | / | / | / | Nut | / | 160 | / | / | / | / | / |
|
| T56-80-M16-M | SUS304 | 80 | 44 | / | M16 | 28 | / | / | 22 | / | / | / | Nut | / | 244 | / | / | / | / | / |
|
| T56-80-M16-S | SUS304 | 80 | 44 | / | M16 | 28 | / | / | 22 | / | / | / | Nut | / | 244 | / | / | / | / | / |
|
SUS304 stainless steel casting,
Type M: bright finish (mirror)
Type S: matt finish (sandblasting)
type B: with standard H7 hinge blind hole
type C: with threaded hole
type D: with threaded hole
stainless steel has corrosion resistance, under special sanitary climate and environmental conditions or in the environment where the law requires the use of corrosion-resistant materials
1. Non-standard, Length can be customized; 2. Optional screws; 3. Ultrasonic cleaning and dust-free packaging

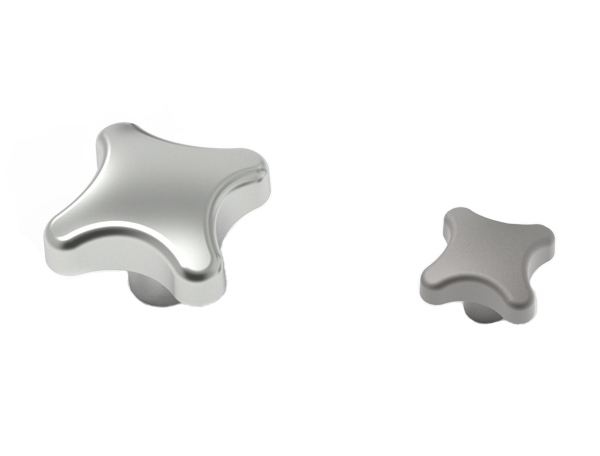

Four Star Nut Knob
