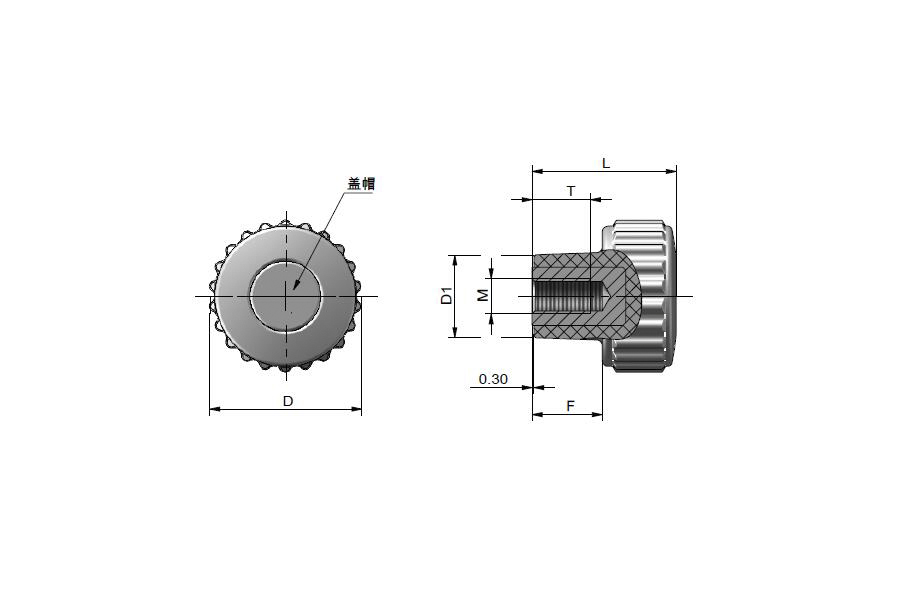

Product size diagram
Product size and properties
| Model Number | Material  | Diameter | Length L | D1 | M | T | D2 | T1 | F | Height | B | E | Feature | L1 | Weight (g) | h | d | S | L2 | D3 | 3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T80-18-M4-W | Polyamide (PA) | 18 | 17 | 10 | M4 | 5 | / | / | 8 | / | / | / | Nut | / | / | / | / | / | / | / | |
| T80-18-M4-B | Polyamide (PA) | 18 | 17 | 10 | M4 | 5 | / | / | 8 | / | / | / | Nut | / | / | / | / | / | / | / | |
| T80-26-M5-W | Polyamide (PA) | 26 | 24.5 | 14 | M5 | 10 | / | / | 12 | / | / | / | Nut | / | / | / | / | / | / | / |
 |
| T80-26-M5-B | Polyamide (PA) | 26 | 24.5 | 14 | M5 | 10 | / | / | 12 | / | / | / | Nut | / | / | / | / | / | / | / |
|
| T80-26-M6-W | Polyamide (PA) | 26 | 24.5 | 14 | M6 | 10 | / | / | 12 | / | / | / | Nut | / | / | / | / | / | / | / | |
| T80-26-M6-B | Polyamide (PA) | 26 | 24.5 | 14 | M6 | 10 | / | / | 12 | / | / | / | Nut | / | / | / | / | / | / | / | |
| T80-31-M6-W | Polyamide (PA) | 31 | 29 | 17 | M6 | 12 | / | / | 14 | / | / | / | Nut | / | / | / | / | / | / | / | |
| T80-31-M6-B | Polyamide (PA) | 31 | 29 | 17 | M6 | 12 | / | / | 14 | / | / | / | Nut | / | / | / | / | / | / | / | |
| T80-31-M8-W | Polyamide (PA) | 31 | 29 | 17 | M8 | 10 | / | / | 14 | / | / | / | Nut | / | / | / | / | / | / | / | |
| T80-31-M8-B | Polyamide (PA) | 31 | 29 | 17 | M8 | 10 | / | / | 14 | / | / | / | Nut | / | / | / | / | / | / | / | |
| T80-40-M8-W | Polyamide (PA) | 40 | 38 | 22 | M8 | 14 | / | / | 18 | / | / | / | Nut | / | / | / | / | / | / | / | |
| T80-40-M8-B | Polyamide (PA) | 40 | 38 | 22 | M8 | 14 | / | / | 18 | / | / | / | Nut | / | / | / | / | / | / | / | |
| T80-40-M10-W | Polyamide (PA) | 40 | 38 | 22 | M10 | 16 | / | / | 18 | / | / | / | Nut | / | / | / | / | / | / | / | |
| T80-40-M10-B | Polyamide (PA) | 40 | 38 | 22 | M10 | 16 | / | / | 18 | / | / | / | Nut | / | / | / | / | / | / | / |
characteristic
W: white B: black matte finish with copper hub
Comfortable grip with high friction
Suitable for various machinery, equipment, etc
Available services
1. Non-standard, Length can be customized; 2. Optional screws; 3. Ultrasonic cleaning and dust-free packaging
Product Name

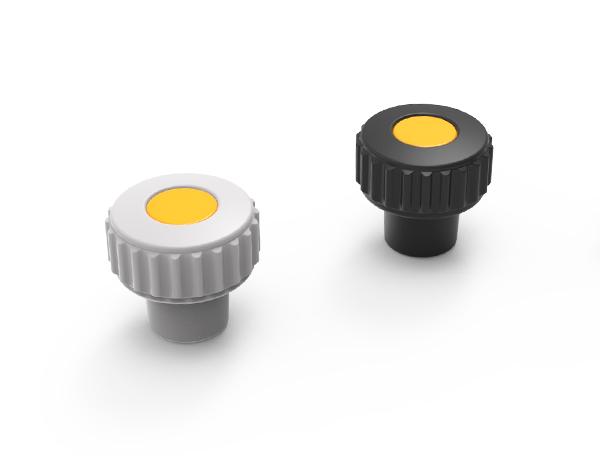

Knurled Grip Knob
Knurled Grip Knob
More information
If you have more technical advice，Please call0535-6217008-801
