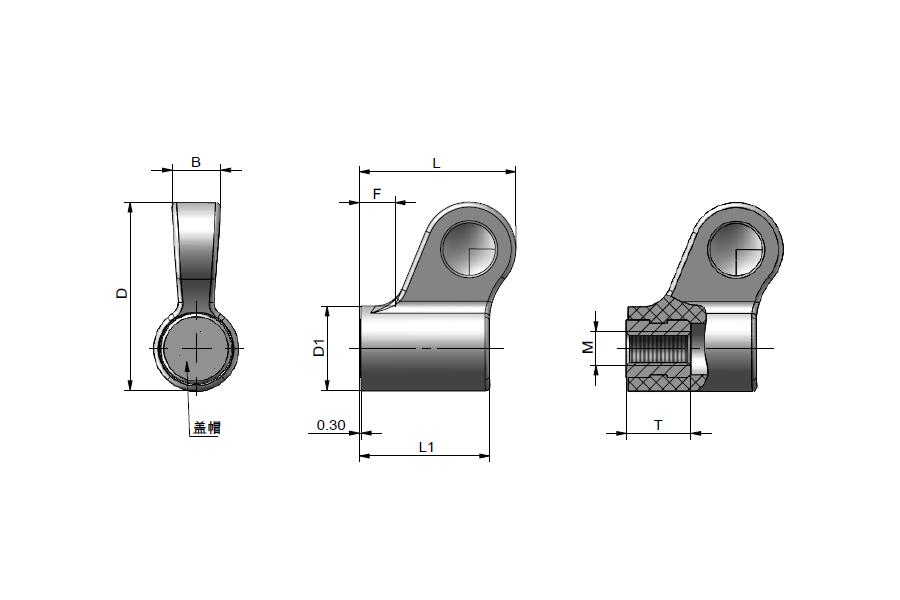

Product size diagram
Product size and properties
| Model Number | Material  | Diameter | Length L | D1 | M | T | D2 | T1 | F | Height | B | E | Feature | L1 | Weight (g) | h | d | S | L2 | D3 | 3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T74-32-M6 | Polyamide (PA) | 32 | 26.5 | / | M6 | 11 | / | / | 6 | / | 8 | / | Nut | 22 | / | / | / | / | / | / |
 |
| T74-43-M8 | Polyamide (PA) | 43 | 35 | / | M8 | 19 | / | / | 8 | / | 11 | / | Nut | 29 | / | / | / | / | / | / | |
| T74-43-M10 | Polyamide (PA) | 43 | 35 | / | M10 | 19 | / | / | 8 | / | 11 | / | Nut | 29 | / | / | / | / | / | / |
characteristic
Black, matte finish
Copper hub: threaded through hole
Cap: removable
The knob is slightly concave in the butterfly part, which is helpful for finger holding and positioning, and is good for fastening. The cap can be taken off and used
Available services
1. Non-standard, Length can be customized; 2. Optional screws; 3. Ultrasonic cleaning and dust-free packaging
Product Name

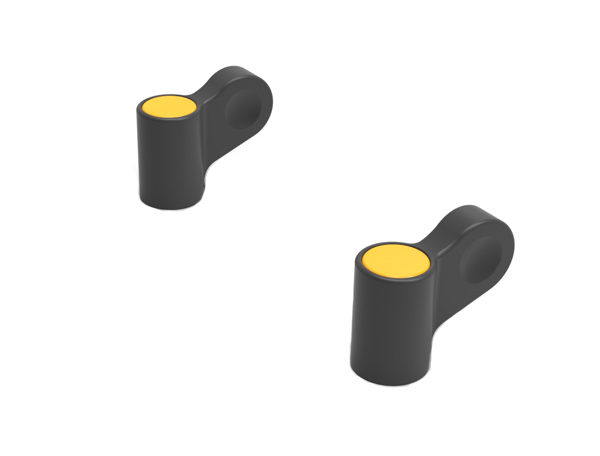

Single Wing Nut Knob
Single Wing Nut Knob
