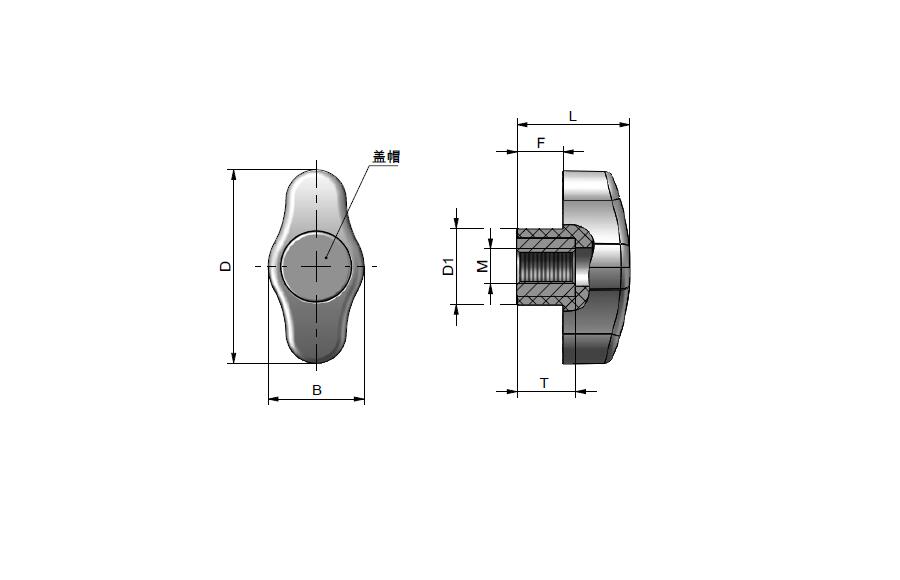

Product size diagram
Product size and properties
| Model Number | Material  | Diameter | Length L | D1 | M | T | D2 | T1 | F | Height | B | E | Feature | L1 | Weight (g) | h | d | S | L2 | D3 | 3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T76-33-M6 | Polyamide (PA) | 33 | 19 | 13 | M6 | 10 | / | / | 8 | / | 16 | / | Nut | / | / | / | / | / | / | / |
 |
| T76-44-M8 | Polyamide (PA) | 44 | 25.5 | 17 | M8 | 15 | / | / | 10.5 | / | 22 | / | Nut | / | / | / | / | / | / | / |
characteristic
Black, matte finish
The knob grip part is slightly concave, can make the hand obtain the best grip strength, is advantageous to the fastening
Available services
1. Non-standard, Length can be customized; 2. Optional screws; 3. Ultrasonic cleaning and dust-free packaging

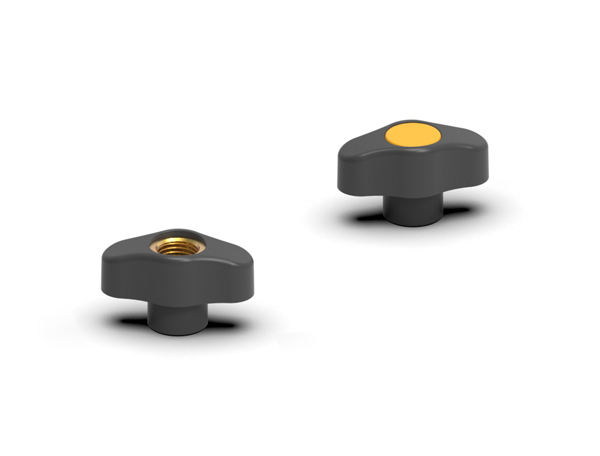

Product Name
Wing Nut Knob
Wing Nut Knob
More information
If you have more technical advice，Please call0535-6217008-801
