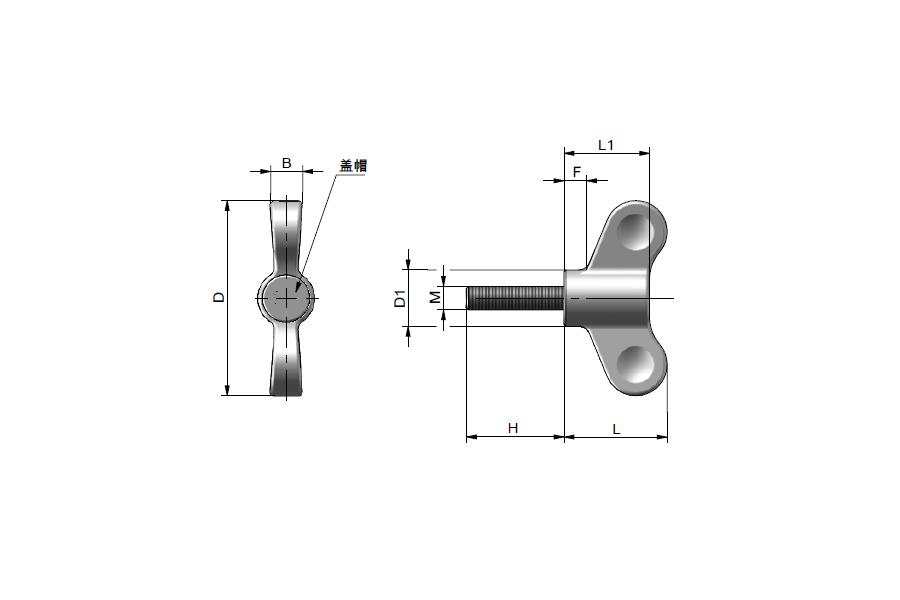

Product size diagram
Product size and properties
| Model Number | Material  | Diameter | Length L | D1 | M | T | D2 | T1 | F | Height | B | E | Feature | L1 | Weight (g) | h | d | S | L2 | D3 | 3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T73-50-M6*20 | Polyamide (PA) | 50 | 26.5 | 14.5 | M6 | / | / | / | 6 | 20 | 8 | / | Screw | 22 | / | / | / | / | / | / | |
| T73-50-M6*30 | Polyamide (PA) | 50 | 26.5 | 14.5 | M6 | / | / | / | 6 | 30 | 8 | / | Screw | 22 | / | / | / | / | / | / |
 |
| T73-50-M6*40 | Polyamide (PA) | 50 | 35 | 14.5 | M6 | / | / | / | 6 | 40 | 11 | / | Screw | 22 | / | / | / | / | / | / | |
| T73-66-M8*20 | Polyamide (PA) | 66.5 | 35 | 19 | M8 | / | / | / | 8 | 20 | 11 | / | Screw | 29 | / | / | / | / | / | / | |
| T73-66-M8*30 | Polyamide (PA) | 66.5 | 35 | 19 | M8 | / | / | / | 8 | 30 | 11 | / | Screw | 29 | / | / | / | / | / | / | |
| T73-66-M8*40 | Polyamide (PA) | 66.5 | 35 | 19 | M8 | / | / | / | 8 | 40 | 11 | / | Screw | 29 | / | / | / | / | / | / | |
| T73-66-M10*20 | Polyamide (PA) | 66.5 | 35 | 19 | M10 | / | / | / | 8 | 20 | 11 | / | Screw | 29 | / | / | / | / | / | / | |
| T73-66-M10*30 | Polyamide (PA) | 66.5 | 35 | 19 | M10 | / | / | / | 8 | 30 | 11 | / | Screw | 29 | / | / | / | / | / | / | |
| T73-66-M10*40 | Polyamide (PA) | 66.5 | 35 | 19 | M10 | / | / | / | 8 | 40 | 12 | / | Screw | 29 | / | / | / | / | / | / |
characteristic
Black, matte finish; Galvanized steel screw
The knob butterfly part is slightly concave, which helps to hold the finger tightly; Serviced fastening
Available services
1. Non-standard, Length can be customized; 2. Optional screws; 3. Ultrasonic cleaning and dust-free packaging

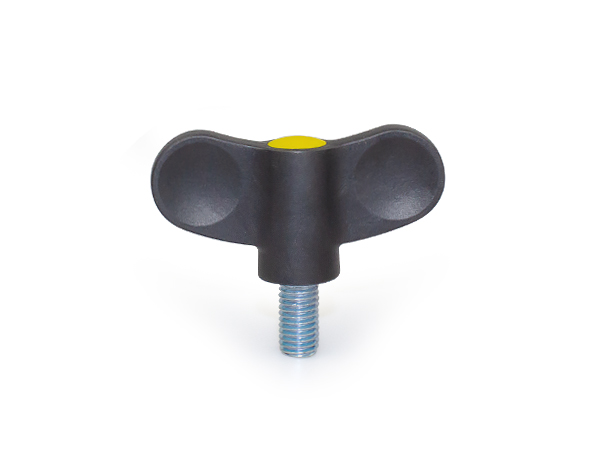

Product Name
Double Wing Bolt Knob
Double Wing Bolt Knob
