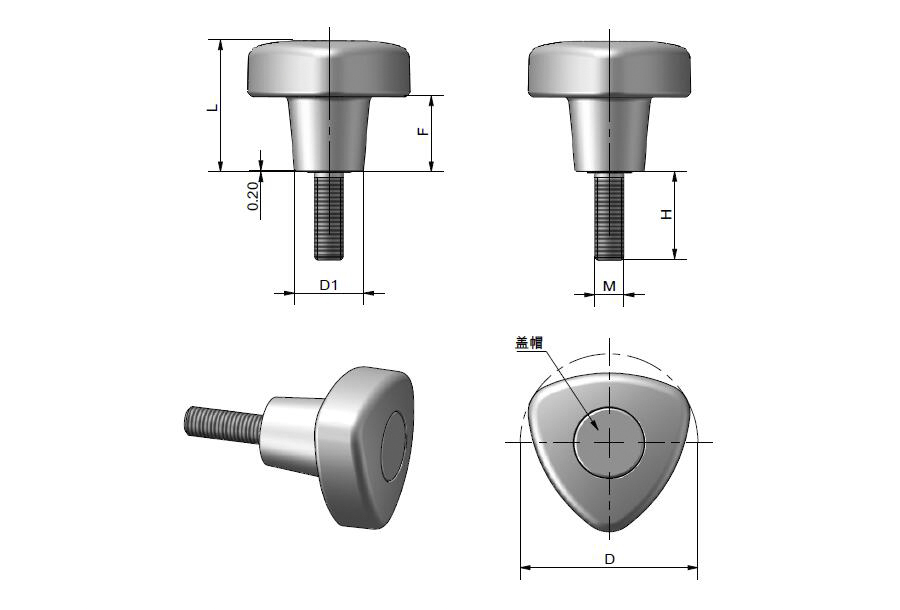

Product size diagram
Product size and properties
| Model Number | Material  | Diameter | Length L | D1 | M | T | D2 | T1 | F | Height | B | E | Feature | L1 | Weight (g) | h | d | S | L2 | D3 | 3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T69-30-M5*10 | Polyamide (PA) | 30 | 22.5 | 12 | M5 | / | / | / | 13 | 10 | / | / | Screw | / | / | / | / | / | / | / |
 |
| T69-30-M5*20 | Polyamide (PA) | 30 | 22.5 | 12 | M5 | / | / | / | 13 | 20 | / | / | Screw | / | / | / | / | / | / | / | |
| T69-30-M5*30 | Polyamide (PA) | 30 | 22.5 | 12 | M5 | / | / | / | 13 | 30 | / | / | Screw | / | / | / | / | / | / | / | |
| T69-30-M6*10 | Polyamide (PA) | 30 | 22.5 | 12 | M6 | / | / | / | 13 | 10 | / | / | Screw | / | / | / | / | / | / | / | |
| T69-30-M6*20 | Polyamide (PA) | 30 | 22.5 | 12 | M6 | / | / | / | 13 | 20 | / | / | Screw | / | / | / | / | / | / | / | |
| T69-30-M6*30 | Polyamide (PA) | 30 | 22.5 | 12 | M6 | / | / | / | 13 | 30 | / | / | Screw | / | / | / | / | / | / | / | |
| T69-40-M6*20 | Polyamide (PA) | 40 | 30 | 16 | M6 | / | / | / | 17 | 20 | / | / | Screw | / | / | / | / | / | / | / | |
| T69-40-M6*40 | Polyamide (PA) | 40 | 30 | 16 | M6 | / | / | / | 17 | 40 | / | / | Screw | / | / | / | / | / | / | / | |
| T69-40-M8*20 | Polyamide (PA) | 40 | 30 | 16 | M8 | / | / | / | 17 | 20 | / | / | Screw | / | / | / | / | / | / | / | |
| T69-40-M8*30 | Polyamide (PA) | 40 | 30 | 16 | M8 | / | / | / | 17 | 30 | / | / | Screw | / | / | / | / | / | / | / | |
| T69-40-M8*40 | Polyamide (PA) | 40 | 30 | 16 | M8 | / | / | / | 17 | 40 | / | / | Screw | / | / | / | / | / | / | / | |
| T69-40-M8*50 | Polyamide (PA) | 40 | 30 | 16 | M8 | / | / | / | 17 | 50 | / | / | Screw | / | / | / | / | / | / | / | |
| T69-50-M8*20 | Polyamide (PA) | 50 | 37.5 | 19.5 | M8 | / | / | / | 21.5 | 20 | / | / | Screw | / | / | / | / | / | / | / | |
| T69-50-M8*30 | Polyamide (PA) | 50 | 37.5 | 19.5 | M8 | / | / | / | 21.5 | 30 | / | / | Screw | / | / | / | / | / | / | / | |
| T69-50-M8*50 | Polyamide (PA) | 50 | 37.5 | 19.5 | M8 | / | / | / | 21.5 | 50 | / | / | Screw | / | / | / | / | / | / | / | |
| T69-50-M10*20 | Polyamide (PA) | 50 | 37.5 | 19.5 | M10 | / | / | / | 21.5 | 20 | / | / | Screw | / | / | / | / | / | / | / | |
| T69-50-M10*30 | Polyamide (PA) | 50 | 37.5 | 19.5 | M10 | / | / | / | 21.5 | 30 | / | / | Screw | / | / | / | / | / | / | / | |
| T69-50-M10*40 | Polyamide (PA) | 50 | 37.5 | 19.5 | M10 | / | / | / | 21.5 | 40 | / | / | Screw | / | / | / | / | / | / | / | |
| T69-50-M10*50 | Polyamide (PA) | 50 | 37.5 | 19.5 | M10 | / | / | / | 21.5 | 50 | / | / | Screw | / | / | / | / | / | / | / |
characteristic
Black, shiny finish, galvanized steel screw
The knobs with three curved surfaces are beautiful and easy to tighten
Available services
1. Non-standard, Length can be customized; 2. Optional screws; 3. Ultrasonic cleaning and dust-free packaging

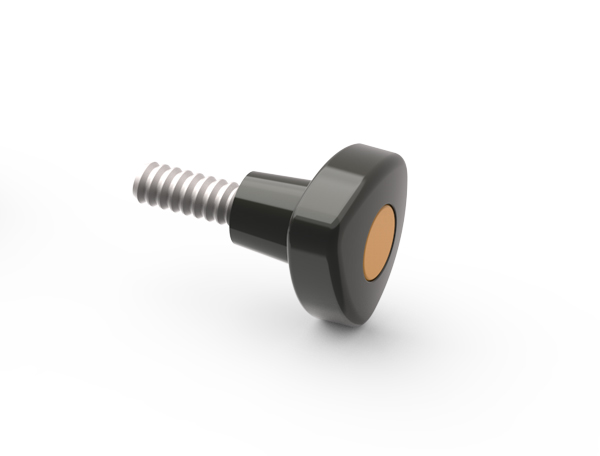

Product Name
Triangle Bolt Knob
Triangle Bolt Knob
More information
If you have more technical advice，Please call0535-6217008-801
