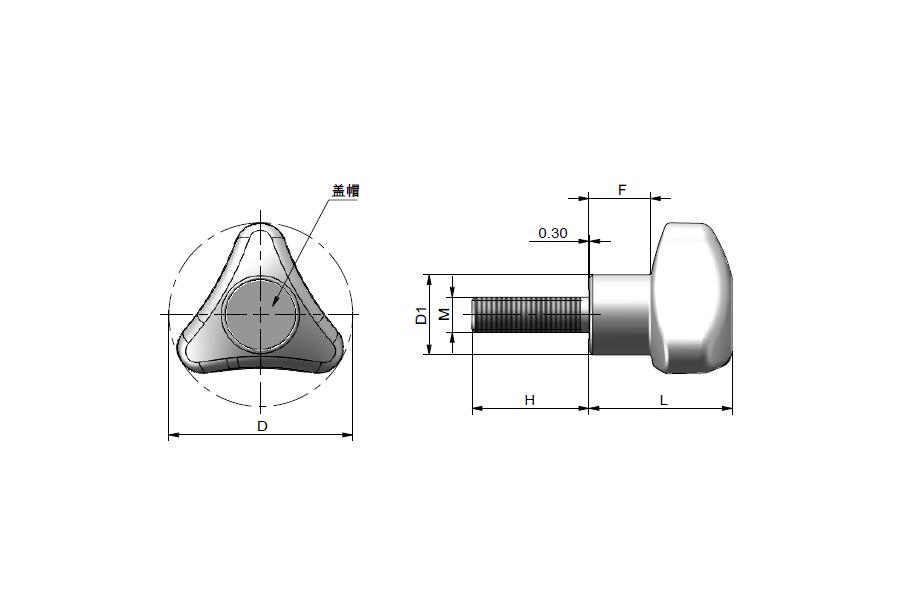

Product size diagram
Product size and properties
| Model Number | Material  | Diameter | Length L | D1 | M | T | D2 | T1 | F | Height | B | E | Feature | L1 | Weight (g) | h | d | S | L2 | D3 | 3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T65-30-M5*10 | Polyamide (PA) | 31 | 24.5 | 14 | M5 | / | / | / | 10.5 | 10 | / | / | Screw | / | / | / | / | / | / | / | |
| T65-30-M5*20 | Polyamide (PA) | 31 | 24.5 | 14 | M5 | / | / | / | 10.5 | 20 | / | / | Screw | / | / | / | / | / | / | / | |
| T65-30-M5*40 | Polyamide (PA) | 31 | 24.5 | 14 | M5 | / | / | / | 10.5 | 40 | / | / | Screw | / | / | / | / | / | / | / | |
| T65-30-M6*10 | Polyamide (PA) | 31 | 24.5 | 14 | M6 | / | / | / | 10.5 | 10 | / | / | Screw | / | / | / | / | / | / | / | |
| T65-30-M6*20 | Polyamide (PA) | 31 | 24.5 | 14 | M6 | / | / | / | 10.5 | 20 | / | / | Screw | / | / | / | / | / | / | / | |
| T65-30-M6*40 | Polyamide (PA) | 31 | 24.5 | 14 | M6 | / | / | / | 10.5 | 40 | / | / | Screw | / | / | / | / | / | / | / | |
| T65-42-M6*20 | Polyamide (PA) | 42 | 33 | 18 | M6 | / | / | / | 14 | 20 | / | / | Screw | / | / | / | / | / | / | / | |
| T65-42-M6*40 | Polyamide (PA) | 42 | 33 | 18 | M6 | / | / | / | 14 | 40 | / | / | Screw | / | / | / | / | / | / | / | |
| T65-42-M8*20 | Polyamide (PA) | 42 | 33 | 18 | M8 | / | / | / | 14 | 20 | / | / | Screw | / | / | / | / | / | / | / | |
| T65-42-M8*30 | Polyamide (PA) | 42 | 33 | 18 | M8 | / | / | / | 14 | 30 | / | / | Screw | / | / | / | / | / | / | / | |
| T65-42-M8*50 | Polyamide (PA) | 42 | 33 | 18 | M8 | / | / | / | 14 | 50 | / | / | Screw | / | / | / | / | / | / | / | |
| T65-52-M8*20 | Polyamide (PA) | 52 | 40 | 23 | M8 | / | / | / | 17 | 20 | / | / | Screw | / | / | / | / | / | / | / | |
| T65-52-M8*40 | Polyamide (PA) | 52 | 40 | 23 | M8 | / | / | / | 17 | 40 | / | / | Screw | / | / | / | / | / | / | / | |
| T65-52-M8*50 | Polyamide (PA) | 52 | 40 | 23 | M8 | / | / | / | 17 | 50 | / | / | Screw | / | / | / | / | / | / | / | |
| T65-52-M10*20 | Polyamide (PA) | 52 | 40 | 23 | M10 | / | / | / | 17 | 20 | / | / | Screw | / | / | / | / | / | / | / | |
| T65-52-M10*30 | Polyamide (PA) | 52 | 40 | 23 | M10 | / | / | / | 17 | 30 | / | / | Screw | / | / | / | / | / | / | / | |
| T65-52-M10*50 | Polyamide (PA) | 52 | 40 | 23 | M10 | / | / | / | 17 | 50 | / | / | Screw | / | / | / | / | / | / | / | |
| T65-63-M10*20 | Polyamide (PA) | 62.5 | 49 | 27.5 | M10 | / | / | / | 21 | 20 | / | / | Screw | / | / | / | / | / | / | / | |
| T65-63-M10*30 | Polyamide (PA) | 62.5 | 49 | 27.5 | M10 | / | / | / | 21 | 30 | / | / | Screw | / | / | / | / | / | / | / | |
| T65-63-M10*50 | Polyamide (PA) | 62.5 | 49 | 27.5 | M10 | / | / | / | 21 | 50 | / | / | Screw | / | / | / | / | / | / | / | |
| T65-63-M12*20 | Polyamide (PA) | 62.5 | 49 | 27.5 | M12 | / | / | / | 21 | 20 | / | / | Screw | / | / | / | / | / | / | / | |
| T65-63-M12*30 | Polyamide (PA) | 62.5 | 49 | 27.5 | M12 | / | / | / | 21 | 30 | / | / | Screw | / | / | / | / | / | / | / | |
| T65-63-M12*50 | Polyamide (PA) | 62.5 | 49 | 27.5 | M12 | / | / | / | 21 | 50 | / | / | Screw | / | / | / | / | / | / | / |
characteristic
Black, matte finish
Galvanized steel screw rod
Beautiful shape, both beautiful and practical
Available services
1. Non-standard, Length can be customized; 2. Optional screws; 3. Ultrasonic cleaning and dust-free packaging 4.Laser cutting Logo
Product Name

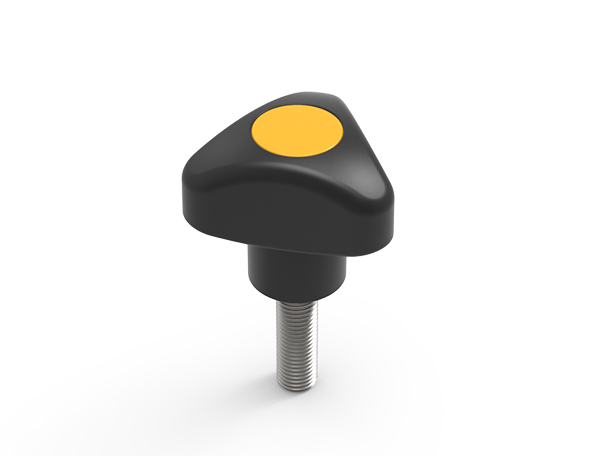

Triangle Bolt Knob
Triangle Bolt Knob
More information
If you have more technical advice，Please call0535-6217008-801
