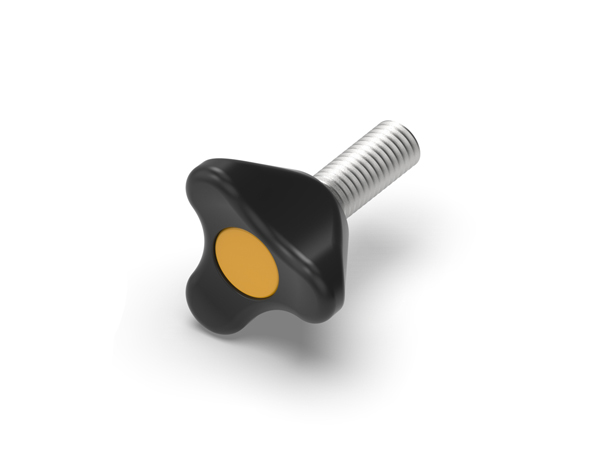

Three Star Bolt Knob

T71

Three Star Bolt Knob

Polyamide (PA)

application:Kitchenware, sanitary ware, entertainment, machinery and other facilities

catalogue CAD data

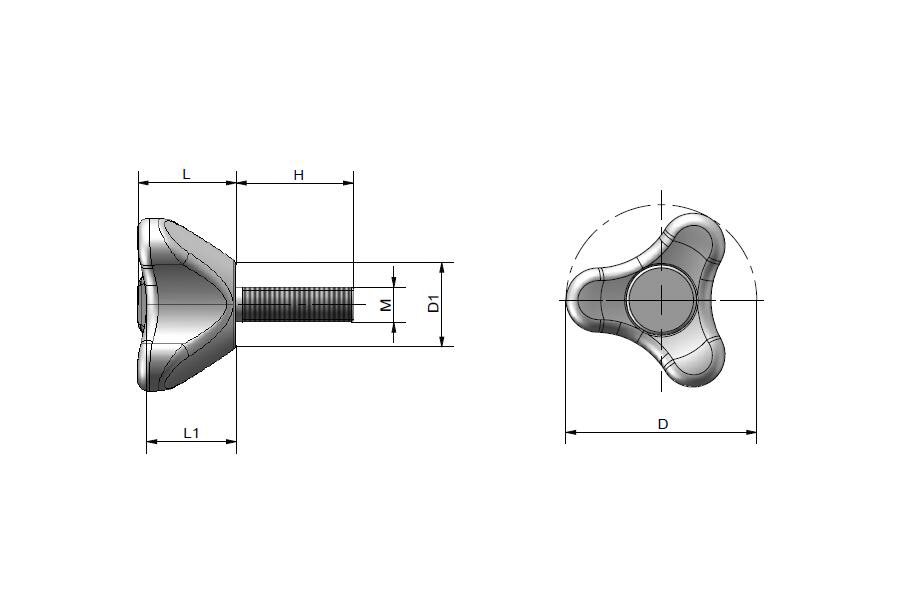

Product size diagram
Product size and properties
Model Number Material bottomDiameter bottomLength L bottomD1 bottomM bottomT bottomD2 bottomT1 bottomF bottomHeight bottomB bottomE bottomFeature bottomL1 Weight (g) bottomh bottomd bottomS bottomL2 bottomD3 3D DRAWINGS
T71-33-M6*10 Polyamide (PA) 32.5 17 15 M6 / / / / 10 / / Screw 15 / / / / / /
T71-33-M6*20 Polyamide (PA) 32.5 17 15 M6 / / / / 20 / / Screw 15 / / / / / /
T71-33-M6*30 Polyamide (PA) 32.5 17 15 M6 / / / / 30 / / Screw 15 / / / / / /
T71-33-M8*20 Polyamide (PA) 32.5 17 15 M8 / / / / 20 / / Screw 15 / / / / / /
T71-33-M8*30 Polyamide (PA) 32.5 17 15 M8 / / / / 30 / / Screw 15 / / / / / /
T71-43-M8*20 Polyamide (PA) 43.5 22 19.5 M8 / / / / 20 / / Screw 20 / / / / / /
T71-43-M8*30 Polyamide (PA) 43.5 22 19.5 M8 / / / / 30 / / Screw 20 / / / / / /
T71-43-M8*40 Polyamide (PA) 43.5 22 19.5 M8 / / / / 40 / / Screw 20 / / / / / /
T71-43-M10*20 Polyamide (PA) 43.5 22 19.5 M10 / / / / 20 / / Screw 20 / / / / / /
T71-43-M10*30 Polyamide (PA) 43.5 22 19.5 M10 / / / / 30 / / Screw 20 / / / / / /
T71-43-M10*40 Polyamide (PA) 43.5 22 19.5 M10 / / / / 40 / / Screw 20 / / / / / /
T71-43-M10*50 Polyamide (PA) 43.5 22 19.5 M10 / / / / 50 / / Screw 20 / / / / / /
characteristic

Black matte finish

Galvanized steel screw rod

The knobs with three curved surfaces are beautiful and easy to grip.

Available services

1. Non-standard, Length can be customized; 2. Optional screws; 3. Ultrasonic cleaning and dust-free packaging 4.Laser cutting Logo
