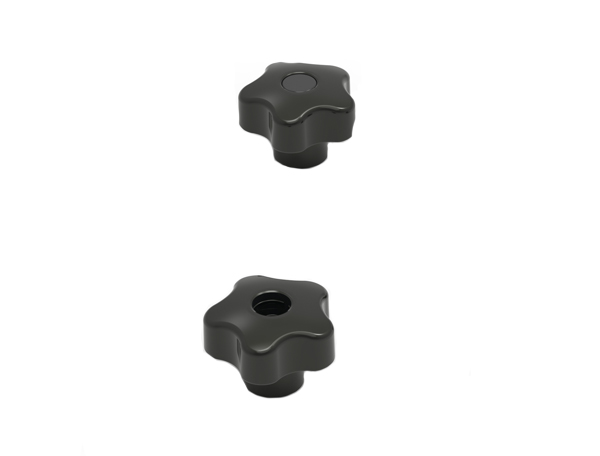

Five Star Nut Knob

T60

Five Star Nut Knob

Polyamide (PA)

application:Widely used in entertainment and catering facilities; Metal mining machinery; Machine tools; Electric control cabinet etc.

catalogue CAD data

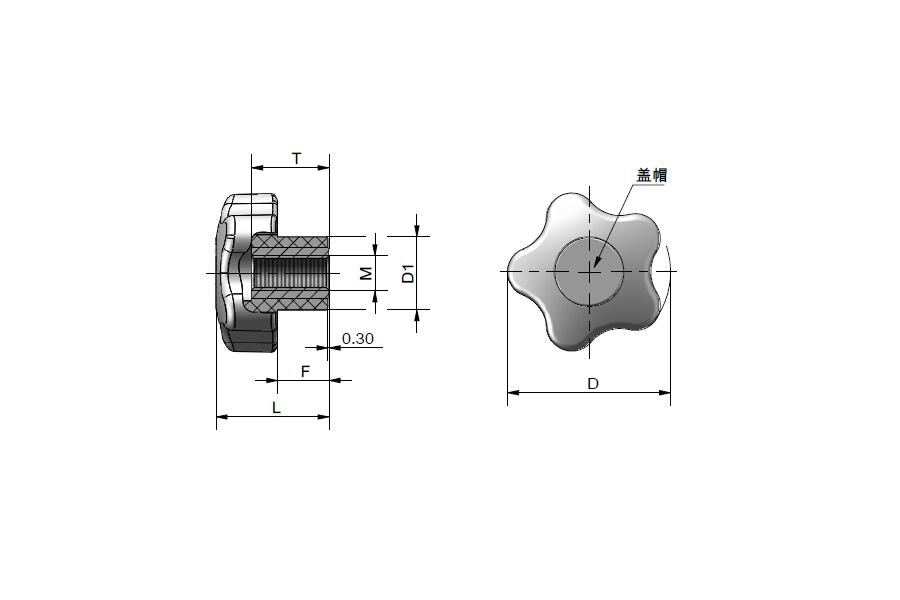

Product size diagram
Product size and properties
Model Number Material bottomDiameter bottomLength L bottomD1 bottomM bottomT bottomD2 bottomT1 bottomF bottomHeight bottomB bottomE bottomFeature bottomL1 Weight (g) bottomh bottomd bottomS bottomL2 bottomD3 3D DRAWINGS
T60-38-M6 Polyamide (PA) 38 26 17 M6 18 / / 12 / / / Nut / / / / / / /
T60-38-M8 Polyamide (PA) 38 26 17 M8 18 / / 12 / / / Nut / / / / / / /
T60-50-M8 Polyamide (PA) 50 35 22.5 M8 22 / / 16 / / / Nut / / / / / / /
T60-50-M10 Polyamide (PA) 50 35 22.5 M10 22 / / 16 / / / Nut / / / / / / /
T60-50-M12 Polyamide (PA) 50 35 22.5 M12 22 / / 16 / / / Nut / / / / / / /
T60-63-M8 Polyamide (PA) 63 44 28 M8 28 / / 20 / / / Nut / / / / / / /
T60-63-M10 Polyamide (PA) 63 44 28 M10 28 / / 20 / / / Nut / / / / / / /
T60-63-M12 Polyamide (PA) 63 44 28 M12 28 / / 20 / / / Nut / / / / / / /
characteristic

Black, matte finish

Copper hub: threaded through hole

Cap: removable

Unique appearance style, users use natural, safer and more comfortable grip. The cap can be taken off and used

Available services

1. Non-standard, Length can be customized; 2. Optional screws; 3. Ultrasonic cleaning and dust-free packaging 4.Laser cutting Logo
