Knob

T48

Knob

Zinc Die-casting Alloys

application:Suitable for all machinery and equipment

catalogue CAD data

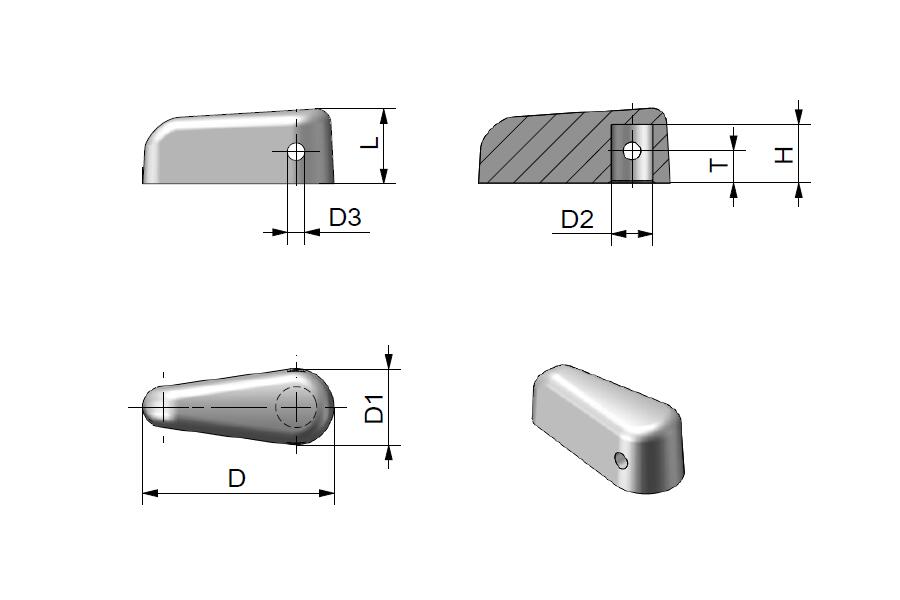

Product size diagram
Product size and properties
Model Number Material bottomDiameter bottomLength L bottomD1 bottomM bottomT bottomD2 bottomT1 bottomF bottomHeight bottomB bottomE bottomFeature bottomL1 Weight (g) bottomh bottomd bottomS bottomL2 bottomD3 3D DRAWINGS
T48-33-W Zinc die-casting alloys 33 13 13 / 5.5 7 / / 10 / / Rotary Knob / / / / / / /
T48-33-B Zinc die-casting alloys 33 13 13 / 5.5 7 / / 10 / / Rotary Knob / / / / / / /

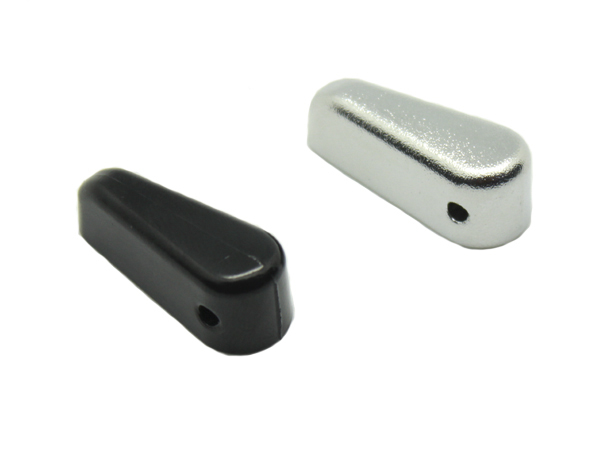

characteristic

W type:Chrome, silver, shiny finish

B type:Black, matte finish

With hole

After the screw or nut stem end is inserted into the knob hole by pressing in, tighten it with a sharp 3 iron screw

Available services

1. Non-standard, Length can be customized; 2. Optional screws; 3. Ultrasonic cleaning and dust-free packaging 4.Laser cutting Logo
