Knurled Grip Knob

T92

Knurled Grip Knob

SUS304

application:Kitchenware, sanitaryware, medical care and other special requirements of the environment, all machinery and equipment can be used

catalogue CAD data

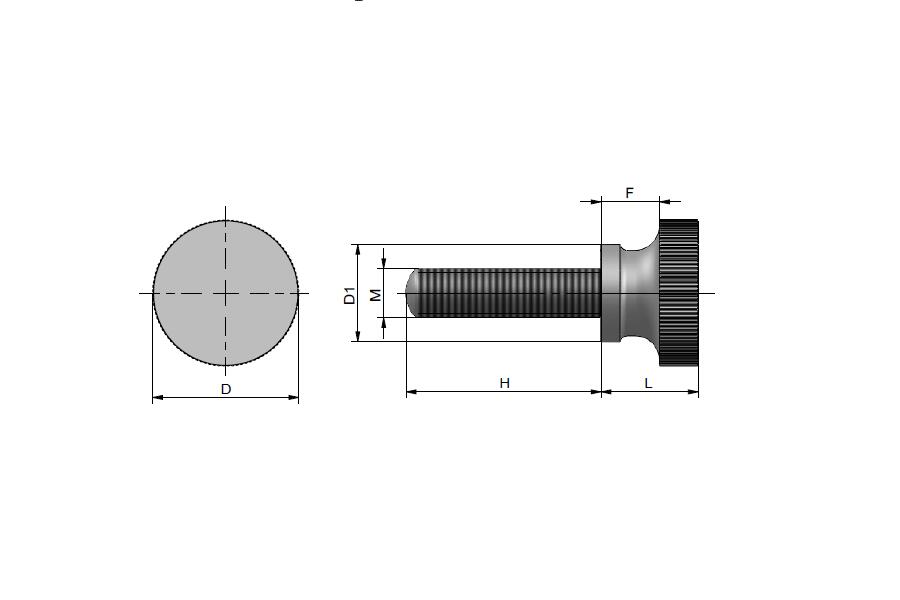

Product size diagram
Product size and properties
Model Number Material bottomDiameter bottomLength L bottomD1 bottomM bottomT bottomD2 bottomT1 bottomF bottomHeight bottomB bottomE bottomFeature bottomL1 Weight (g) bottomh bottomd bottomS bottomL2 bottomD3 3D DRAWINGS
T92-30-M10*70 SUS304 30 20 / M10 / / / 12 70 / / Screw / / / / / / /
T92-30-M10*40 SUS304 30 20 / M10 / / / 12 40 / / Screw / / / / / / /
T92-30-M10*30 SUS304 30 20 / M10 / / / 12 30 / / Screw / / / / / / /
T92-30-M10*25 SUS304 30 20 / M10 / / / 12 25 / / Screw / / / / / / /
T92-24-M8*50 SUS304 24 16 / M8 / / / 10 50 / / Screw / / / / / / /
T92-24-M8*45 SUS304 24 16 / M8 / / / 10 45 / / Screw / / / / / / /
T92-24-M8*40 SUS304 24 16 / M8 / / / 10 40 / / Screw / / / / / / /
T92-24-M8*35 SUS304 24 16 / M8 / / / 10 35 / / Screw / / / / / / /
T92-24-M8*30 SUS304 24 16 / M8 / / / 10 30 / / Screw / / / / / / /
T92-24-M8*25 SUS304 24 16 / M8 / / / 10 25 / / Screw / / / / / / /
T92-24-M8*20 SUS304 24 16 / M8 / / / 10 20 / / Screw / / / / / / /
T92-24-M8*16 SUS304 24 16 / M8 / / / 10 16 / / Screw / / / / / / /
T92-20-M6*50 SUS304 20 12 / M6 / / / 7 50 / / Screw / / / / / / /
T92-20-M6*45 SUS304 20 12 / M6 / / / 7 45 / / Screw / / / / / / /
T92-20-M6*40 SUS304 20 12 / M6 / / / 7 40 / / Screw / / / / / / /
T92-20-M6*35 SUS304 20 12 / M6 / / / 7 35 / / Screw / / / / / / /
T92-20-M6*30 SUS304 20 12 / M6 / / / 7 30 / / Screw / / / / / / /
T92-20-M6*25 SUS304 20 12 / M6 / / / 7 25 / / Screw / / / / / / /
T92-20-M6*20 SUS304 20 12 / M6 / / / 7 20 / / Screw / / / / / / /
T92-20-M6*16 SUS304 20 12 / M6 / / / 7 16 / / Screw / / / / / / /
characteristic

End knurling,Easy to fasten.The ball end shape of the screw rod can also be used as a fastening screw

Available services

1. Non-standard, Length can be customized; 2. Optional screws; 3. Ultrasonic cleaning and dust-free packaging 4.Laser cutting Logo
