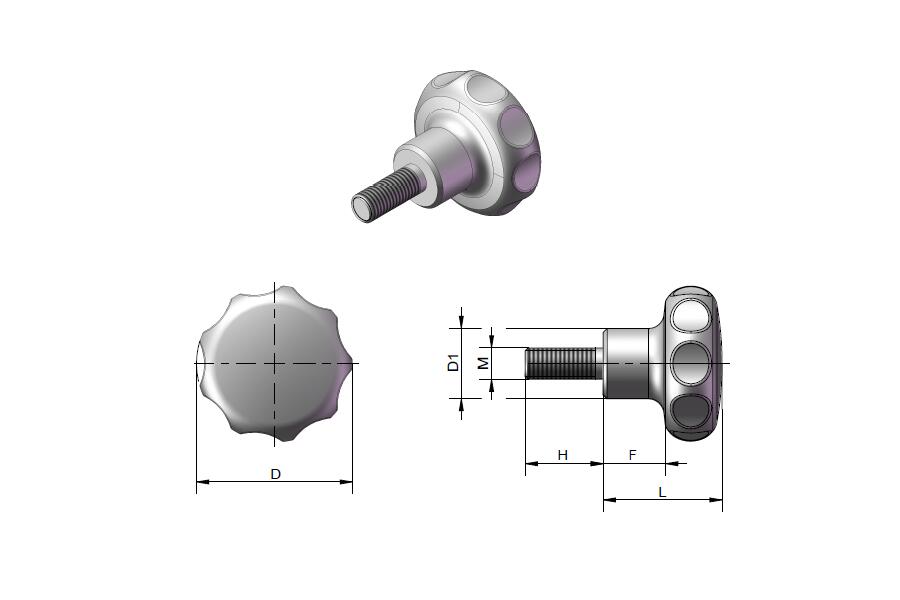

Product size diagram
Product size and properties
| Model Number | Material  | Diameter | Length L | D1 | M | T | D2 | T1 | F | Height | B | E | Feature | L1 | Weight (g) | h | d | S | L2 | D3 | 3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T51-32-M6*10 | Aluminum Alloy | 32 | 24 | 14 | M6 | / | / | / | 13 | 10 | / | / | Bolt | / | 27.5 | / | / | / | / | / | |
| T51-32-M6*20 | Aluminum Alloy | 32 | 24 | 14 | M6 | / | / | / | 13 | 20 | / | / | Bolt | / | 29.2 | / | / | / | / | / | |
| T51-32-M6*30 | Aluminum Alloy | 32 | 24 | 14 | M6 | / | / | / | 13 | 30 | / | / | Bolt | / | 30.9 | / | / | / | / | / | |
| T51-40-M8*20 | Aluminum Alloy | 40 | 30.5 | 18 | M8 | / | / | / | 16 | 20 | / | / | Bolt | / | 55.8 | / | / | / | / | / |
 |
| T51-40-M8*30 | Aluminum Alloy | 40 | 30.5 | 18 | M8 | / | / | / | 16 | 30 | / | / | Bolt | / | 58.9 | / | / | / | / | / | |
| T51-40-M8*40 | Aluminum Alloy | 40 | 30.5 | 18 | M8 | / | / | / | 16 | 40 | / | / | Bolt | / | 62.0 | / | / | / | / | / | |
| T51-50-M10*20 | Aluminum Alloy | 50 | 38 | 22.5 | M10 | / | / | / | 20 | 20 | / | / | Bolt | / | / | / | / | / | / | / | |
| T51-50-M10*30 | Aluminum Alloy | 50 | 38 | 22.5 | M10 | / | / | / | 20 | 30 | / | / | Bolt | / | / | / | / | / | / | / | |
| T51-50-M10*40 | Aluminum Alloy | 50 | 38 | 22.5 | M10 | / | / | / | 20 | 40 | / | / | Bolt | / | / | / | / | / | / | / | |
| T51-50-M10*50 | Aluminum Alloy | 50 | 38 | 22.5 | M10 | / | / | / | 20 | 50 | / | / | Bolt | / | / | / | / | / | / | / | |
| T51-60-M12*20 | Aluminum Alloy | 60 | 45.5 | 27 | M12 | / | / | / | 24 | 20 | / | / | Bolt | / | / | / | / | / | / | / | |
| T51-60-M12*30 | Aluminum Alloy | 60 | 45.5 | 27 | M12 | / | / | / | 24 | 30 | / | / | Bolt | / | / | / | / | / | / | / | |
| T51-60-M12*40 | Aluminum Alloy | 60 | 45.5 | 27 | M12 | / | / | / | 24 | 40 | / | / | Bolt | / | / | / | / | / | / | / | |
| T51-60-M12*50 | Aluminum Alloy | 60 | 45.5 | 27 | M12 | / | / | / | 24 | 50 | / | / | Bolt | / | / | / | / | / | / | / | |
| T51B-32-M6*10 | SUS304 | 32 | 24 | 14 | M6 | / | / | / | 13 | 10 | / | / | Bolt | / | / | / | / | / | / | / | |
| T51B-32-M6*20 | SUS304 | 32 | 24 | 14 | M6 | / | / | / | 13 | 20 | / | / | Bolt | / | / | / | / | / | / | / | |
| T51B-32-M6*30 | SUS304 | 32 | 24 | 14 | M6 | / | / | / | 13 | 30 | / | / | Bolt | / | / | / | / | / | / | / | |
| T51B-40-M8*20 | SUS304 | 40 | 30.5 | 18 | M8 | / | / | / | 16 | 20 | / | / | Bolt | / | / | / | / | / | / | / | |
| T51B-40-M8*30 | SUS304 | 40 | 30.5 | 18 | M8 | / | / | / | 16 | 30 | / | / | Bolt | / | / | / | / | / | / | / | |
| T51B-40-M8*40 | SUS304 | 40 | 30.5 | 18 | M8 | / | / | / | 16 | 40 | / | / | Bolt | / | / | / | / | / | / | / | |
| T51B-50-M10*20 | SUS304 | 50 | 38 | 22.5 | M10 | / | / | / | 20 | 20 | / | / | Bolt | / | / | / | / | / | / | / | |
| T51B-50-M10*30 | SUS304 | 50 | 38 | 22.5 | M10 | / | / | / | 20 | 30 | / | / | Bolt | / | / | / | / | / | / | / | |
| T51B-50-M10*40 | SUS304 | 50 | 38 | 22.5 | M10 | / | / | / | 20 | 40 | / | / | Bolt | / | / | / | / | / | / | / | |
| T51B-50-M10*50 | SUS304 | 50 | 38 | 22.5 | M10 | / | / | / | 20 | 50 | / | / | Bolt | / | / | / | / | / | / | / | |
| T51B-60-M12*20 | SUS304 | 60 | 45.5 | 27 | M12 | / | / | / | 24 | 20 | / | / | Bolt | / | / | / | / | / | / | / | |
| T51B-60-M12*30 | SUS304 | 60 | 45.5 | 27 | M12 | / | / | / | 24 | 30 | / | / | Bolt | / | / | / | / | / | / | / | |
| T51B-60-M12*40 | SUS304 | 60 | 45.5 | 27 | M12 | / | / | / | 24 | 40 | / | / | Bolt | / | / | / | / | / | / | / | |
| T51B-60-M12*50 | SUS304 | 60 | 45.5 | 27 | M12 | / | / | / | 24 | 50 | / | / | Bolt | / | / | / | / | / | / | / |
characteristic
T51: Aluminum alloy, matte finish
T51B: stainless steel, matte finish
Stainless steel has good corrosion resistance，under special sanitary climate and environmental conditions or in the environment where the law requires the use of corrosion-resistant materials.
Available services
1. Non-standard, Length can be customized; 2. Optional screws; 3. Ultrasonic cleaning and dust-free packaging 4.Laser cutting Logo
Product Name

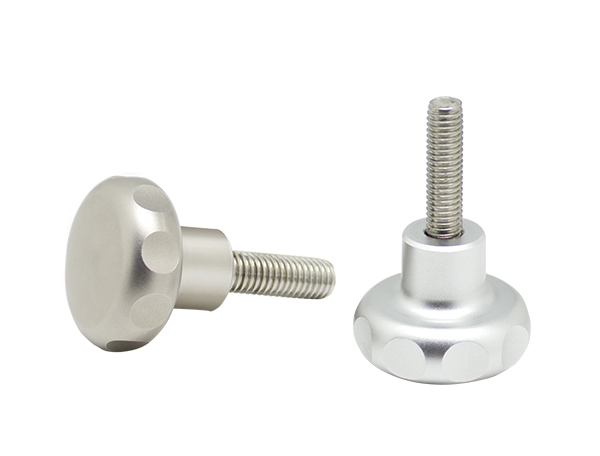

Plum Bolt Knob
