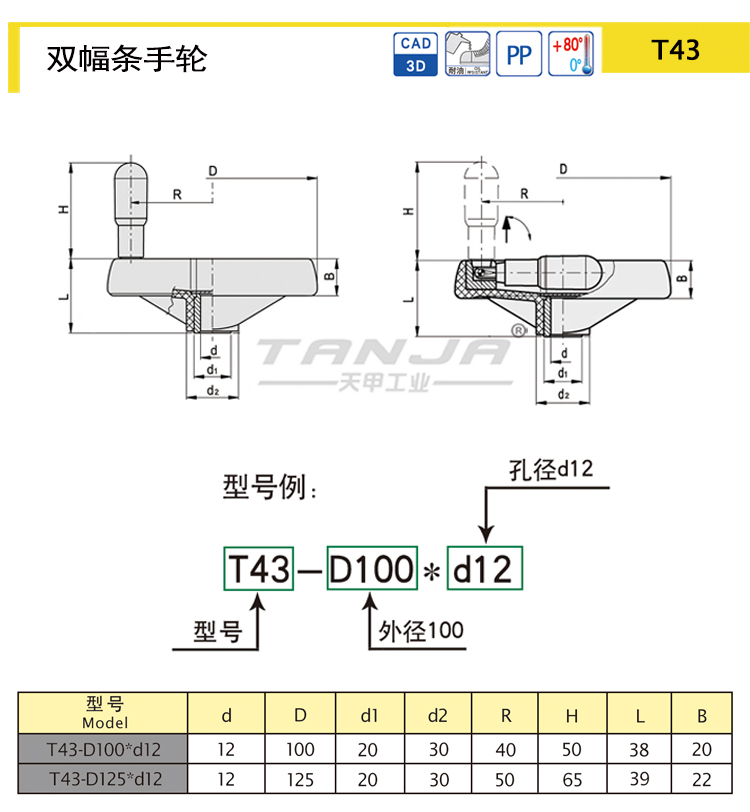

Product size diagram
Product size and properties
| Model Number | H  | L1 | Material | B | D1 | M | R | H2 | d1 | d2 | h | d | D | L | h1 | r | s | a | b | I | d4 | f |
3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T43-D100*d12 | 50 | / | Polypropylene(PP) high-tech polymer | 20 | / | / | 40 | / | 20 | 30 | / | 12 | 100 | 38 | / | / | / | / | / | / | / | / | |
| T43-D125*d12 | 65 | / | Polypropylene(PP) high-tech polymer | 22 | / | / | 50 | / | 20 | 30 | / | 12 | 125 | 39 | / | / | / | / | / | / | / | / |
characteristic
Resistant to chemical solvent, greasy dirt, matte finish,with better stiffness and toughness.
The handle can be used to make large concentric adjustments
Hollow wheel rim design allows the operator to easily complete the micro adjustment
Insert: steel sleeve
Color: black
Available services
1. Non-standard, Length can be customized; 2. Optional screws; 3. Ultrasonic cleaning and dust-free packaging

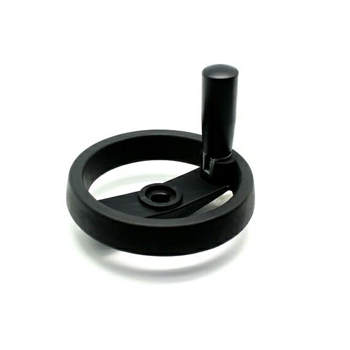

Product Name
Hand Wheel
Hand Wheel
More information
If you have more technical advice，Please call0535-6217008-801
