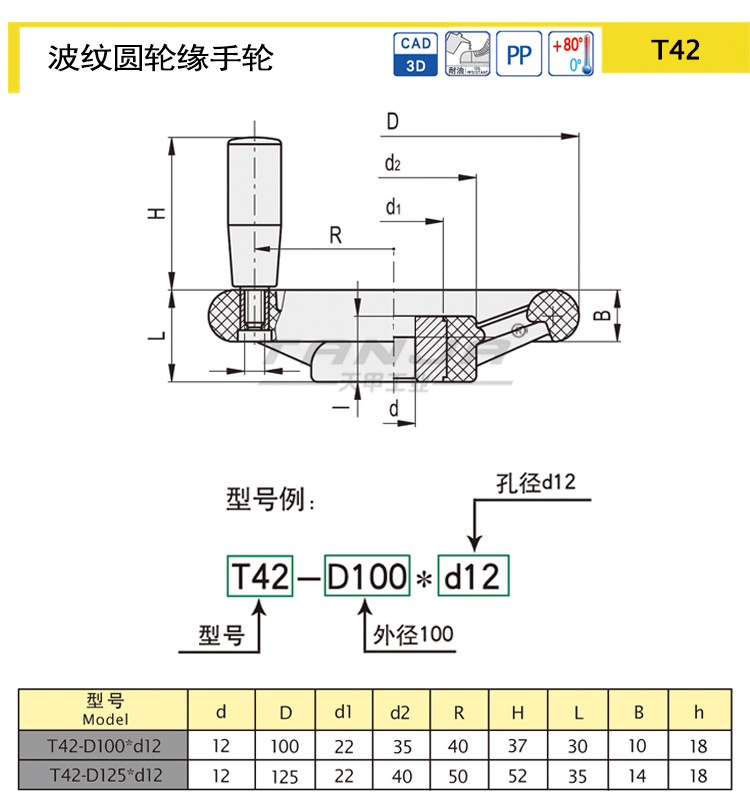

Product size diagram
Product size and properties
| Model Number | H  | L1 | Material | B | D1 | M | R | H2 | d1 | d2 | h | d | D | L | h1 | r | s | a | b | I | d4 | f |
3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T42-D100*d12 | 37 | / | Polypropylene(PP) high-tech polymer | 10 | / | / | 40 | / | 22 | 35 | / | 12 | 100 | 30 | / | / | / | / | / | / | / | / | |
| T42-D125*d12 | 52 | / | Polypropylene(PP) high-tech polymer | 14 | / | / | 50 | / | 22 | 40 | / | 12 | 125 | 35 | / | / | / | / | / | / | / | / |
characteristic
Resistant to chemical solvent,greasy dirt
Available services
1. Non-standard, Length can be customized; 2. Optional screws; 3. Ultrasonic cleaning and dust-free packaging
Product Name

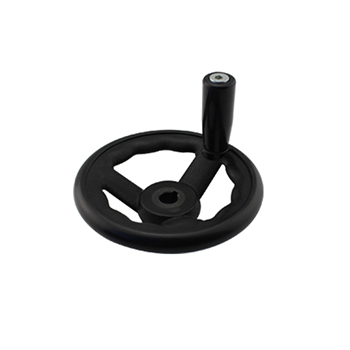

Hand Wheels
Hand Wheels
More information
If you have more technical advice，Please call0535-6217008-801
