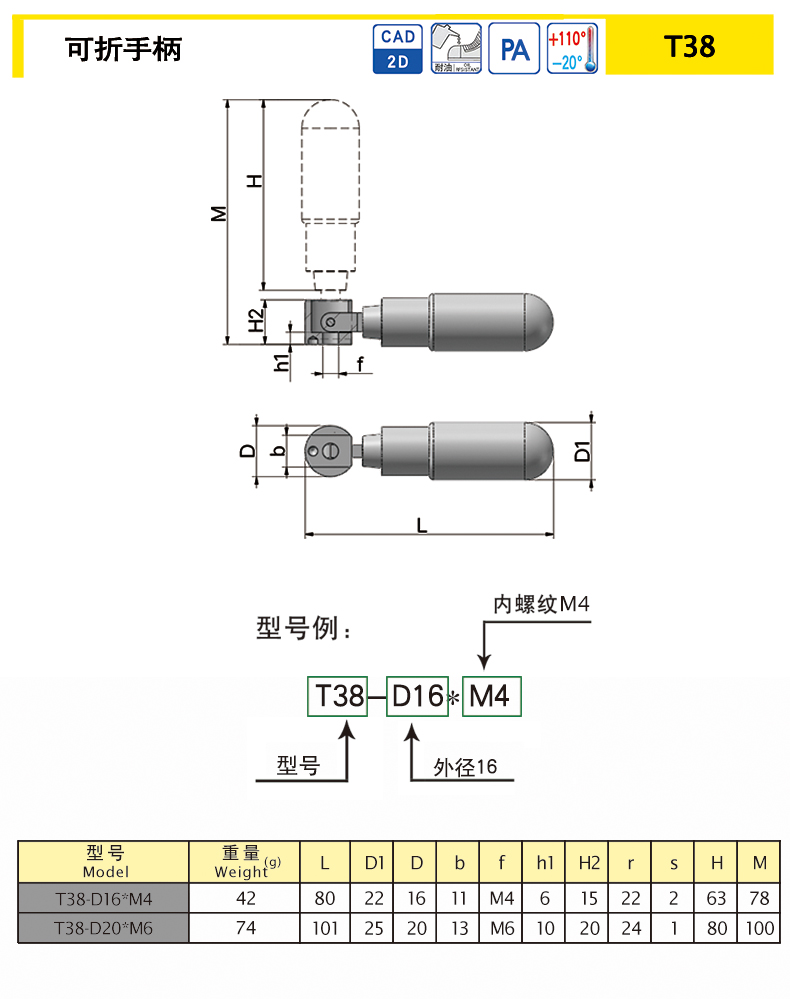

Product size diagram
Product size and properties
| Model Number | H  | L1 | Material | B | D1 | M | R | H2 | d1 | d2 | h | d | D | L | h1 | r | s | a | b | I | d4 | f |
3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T38-D16*M4 | 63 | / | Polyamide(PA) high tech polymer | / | 22 | 78 | / | 15 | / | / | / | / | 16 | 80 | 6 | 22 | 2 | / | 11 | / | / | M4 |
 |
| T38-D20*M6 | 80 | / | Polyamide(PA) high tech polymer | / | 25 | 100 | / | 20 | / | / | / | / | 20 | 101 | 10 | 24 | 1 | / | 13 | / | / | M6 |
characteristic
Resistant to chemical solvent,greasy dirt.
Available services
1. Non-standard, Length can be customized; 2. Optional screws; 3. Ultrasonic cleaning and dust-free packaging
Product Name

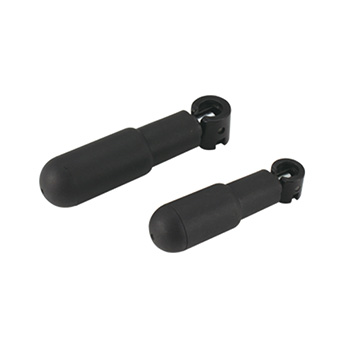

Fold-AwayHandle
Fold-AwayHandle
