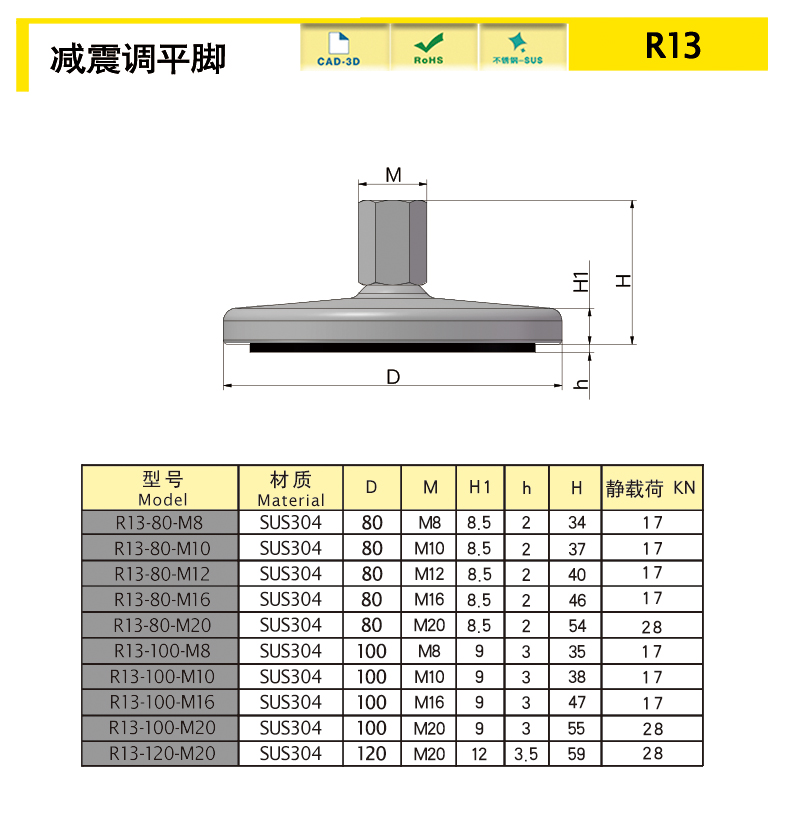

Product size diagram
Product size and properties
| Model Number | Material | Diameter | M | S | K | H | h | h1 | H1 | Weight (g) | Static Load (KN) | 3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| R13-80-M8 | SUS304 | 80 | M8 | / | / | 34 | 2 | / | 8.5 | / | 17 | |
| R13-80-M10 | SUS304 | 80 | M10 | / | / | 37 | 2 | / | 8.5 | / | 17 | |
| R13-80-M12 | SUS304 | 80 | M12 | / | / | 40 | 2 | / | 8.5 | / | 17 | |
| R13-80-M16 | SUS304 | 80 | M16 | / | / | 46 | 2 | / | 8.5 | / | 17 | |
| R13-80-M20 | SUS304 | 80 | M20 | / | / | 54 | 2 | / | 8.5 | / | 28 | |
| R13-100-M8 | SUS304 | 100 | M8 | / | / | 35 | 3 | / | 9 | / | 17 | |
| R13-100-M10 | SUS304 | 100 | M10 | / | / | 38 | 3 | / | 9 | / | 17 | |
| R13-100-M16 | SUS304 | 100 | M16 | / | / | 47 | 3 | / | 9 | / | 17 | |
| R13-100-M20 | SUS304 | 100 | M20 | / | / | 55 | 3 | / | 9 | / | 28 | |
| R13-120-M20 | SUS304 | 120 | M20 | / | / | 59 | 3.5 | / | 12 | / | 28 |
characteristic
Material-Seat/Screw: SUS 304
Material-Pad: Rubber (NBR), oil resistant, alkali resistant, heat resistant 130℃.
Extremely smooth screw,install quickly.
Shockproof Anti-rust, anti-skid, alkali-resistant, wear-resistant and oil-resistant.
Available services
1. Non-standard, Length can be customized; 2. Optional screws; 3. Ultrasonic cleaning and dust-free packaging
Product Name

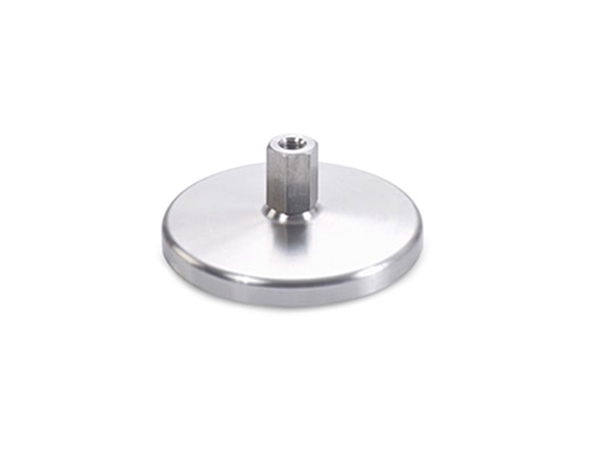

Damping Leveling Feet
Damping Leveling Feet
