Damping Leveling Feet

R12

Damping Leveling Feet

SUS304

application:Food machinery, Packaging machinery, Testing instruments, Medical equipment, etc.

catalogue CAD data

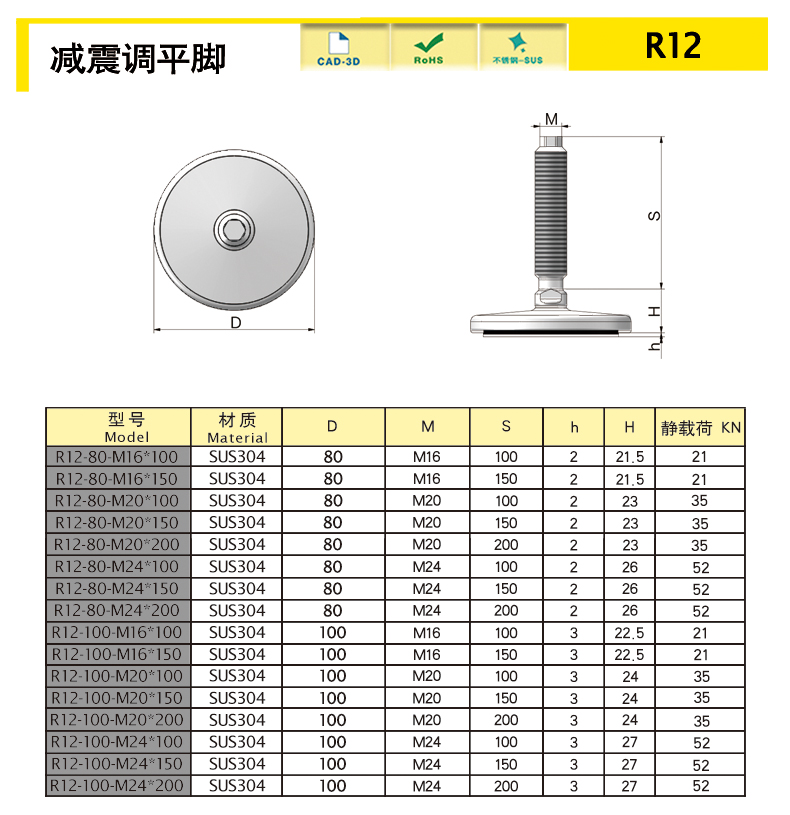

Product size diagram
Product size and properties
Model Number Material Diameter M S K H h h1 H1 Weight (g) Static Load (KN) 3D DRAWINGS
R12-80-M16×100 SUS304 80 M16 100 / 21.5 2 / / / 21
R12-80-M16×150 SUS304 80 M16 150 / 21.5 2 / / / 21
R12-80-M20×100 SUS304 80 M20 100 / 23 2 / / / 35
R12-80-M20×150 SUS304 80 M20 150 / 23 2 / / / 35
R12-80-M20×200 SUS304 80 M20 200 / 23 2 / / / 35
R12-80-M24×100 SUS304 80 M24 100 / 26 2 / / / 52
R12-80-M24×150 SUS304 80 M24 150 / 26 2 / / / 52
R12-80-M24×200 SUS304 80 M24 200 / 26 2 / / / 52
R12-100-M16×100 SUS304 100 M16 100 / 22.5 3 / / / 21
R12-100-M16×150 SUS304 100 M16 150 / 22.5 3 / / / 21
R12-100-M20×100 SUS304 100 M20 100 / 24 3 / / / 35
R12-100-M20×150 SUS304 100 M20 150 / 24 3 / / / 35
R12-100-M20×200 SUS304 100 M20 200 / 24 3 / / / 35
R12-100-M24×100 SUS304 100 M24 100 / 27 3 / / / 52
R12-100-M24×150 SUS304 100 M24 150 / 27 3 / / / 52
R12-100-M24×200 SUS304 100 M24 200 / 27 3 / / / 52
characteristic
Seat/Screw: SUS 304

Pad: Rubber (NBR), oil resistant, alkali resistant, heat resistant 130℃.

Extremely smooth screw,install quickly.
Shockproof Anti-rust, anti-skid, alkali-resistant, wear-resistant and oil-resistant.

Available services
1. Non-standard, Length can be customized; 2. Optional screws; 3. Ultrasonic cleaning and dust-free packaging
