Leveling Feet

R09

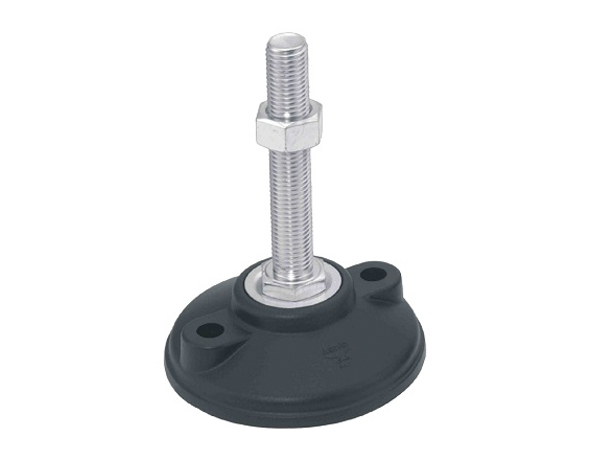

Leveling Feet

SUS304 / Carbon Steel

application:General Equipment, Fitness machinery, Fixtures

catalogue CAD data

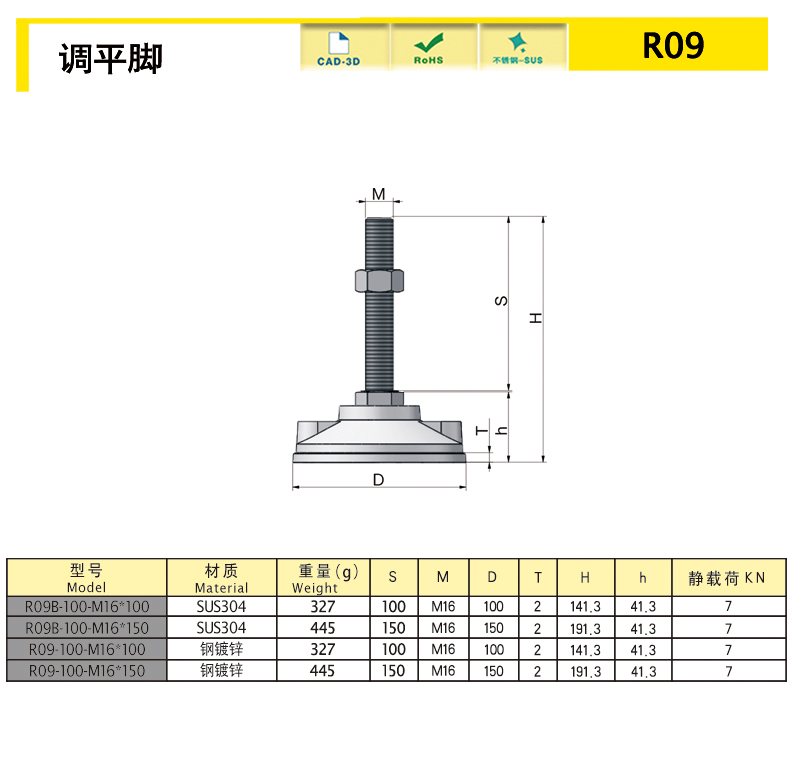

Product size diagram
Product size and properties
Model Number Material Diameter M S K H h h1 H1 Weight (g) Static Load (KN) 3D DRAWINGS
R09-100-M16×100 Carbon Steel 100 M16 100 / 141.3 41.3 / / 327 7
R09-100-M16×150 Carbon Steel 150 M16 150 / 191.3 41.3 / / 445 7
R09B-100-M16×100 SUS304 100 M16 100 / 141.3 41.3 / / 327 7
R09B-100-M16×150 SUS304 100 M16 150 / 191.3 41.3 / / 445 7
characteristic

Seat: PA

Screw:SUS304

Pad: Rubber (NBR), oil resistant, alkali resistant, heat resistant 130℃.

Extremely smooth screw,install quickly.

Shockproof Anti-rust, anti-skid, alkali-resistant, wear-resistant and oil-resistant.


Available services
1. Non-standard, Length can be customized; 2. Optional screws; 3. Ultrasonic cleaning and dust-free packaging
