Damping Leveling Feet

R11

SUS304

application：Food machinery, Packaging machinery, Testing instruments, Medical equipment, etc.

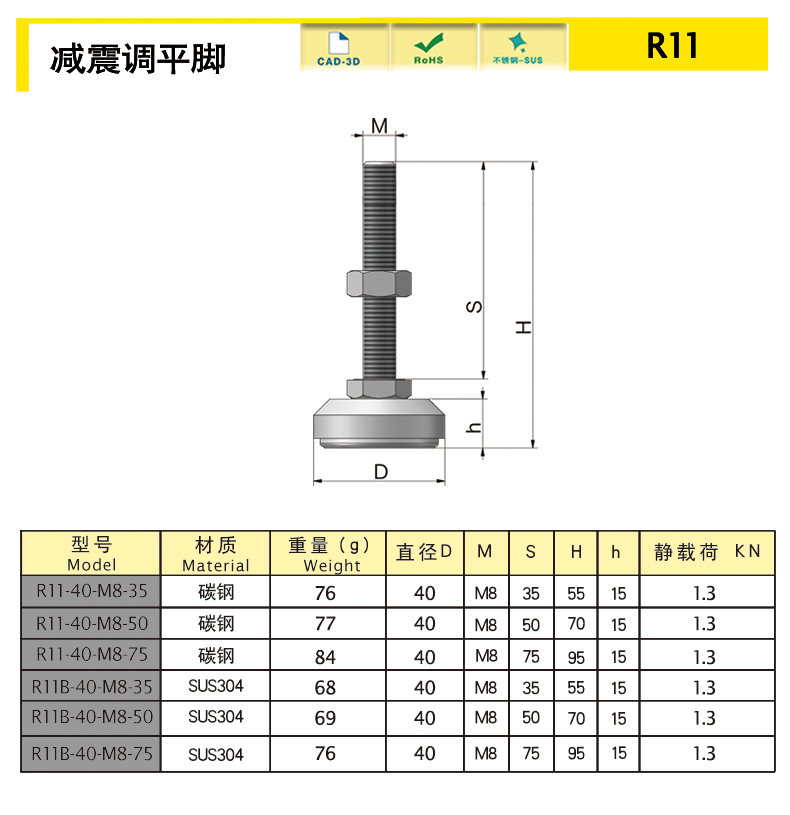

Product size diagram

Product size and properties

Model Number	Material	Diameter	M	S	K	H	h	h1	H1	Weight (g)	Static Load (KN)
R11-40-M8×35	Carbon Steel	40	M8	35	/	55	15	/	/	76	1.3
R11-40-M8×50	Carbon steel	40	M8	50	/	70	15	/	/	77	1.3
R11-40-M8×75	Carbon steel	40	M8	75	/	75	15	/	/	84	1.3
R11B-40-M8×35	SUS304	40	M8	35	/	55	15	/	/	68	1.3
R11B-40-M8×50	SUS304	40	M8	50	/	70	15	/	/	69	1.3
R11B-40-M8×75	SUS304	40	M8	75	/	75	15	/	/	76	1.3

characteristic

Material-Seat/Screw: SUS 304

Material-Pad: Rubber (NBR), oil resistant, alkali resistant, heat resistant 130℃.

Extremely smooth screw,install quickly.

Shockproof Anti-rust, anti-skid, alkali-resistant, wear-resistant and oil-resistant.

Available services

1. Non-standard, Length can be customized; 2. Optional screws; 3. Ultrasonic cleaning and dust-free packaging

Product Name
Damping Leveling Feet
