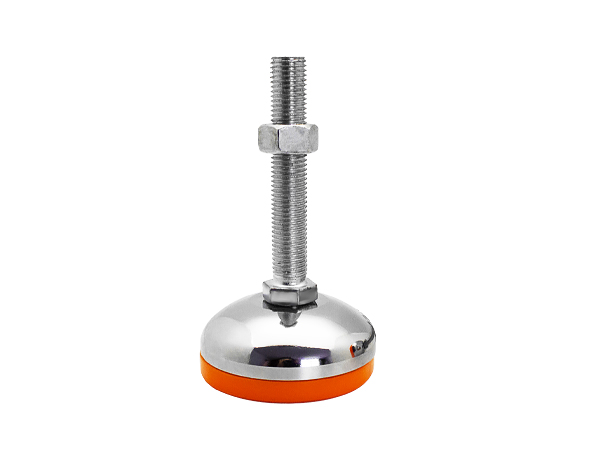

Heavy Duty Leveling Feet

R15

Heavy Duty Leveling Feet

SPCC/SUS304

application:Food machinery, Packaging machinery, Testing instruments, Medical equipment, etc.

catalogue CAD data

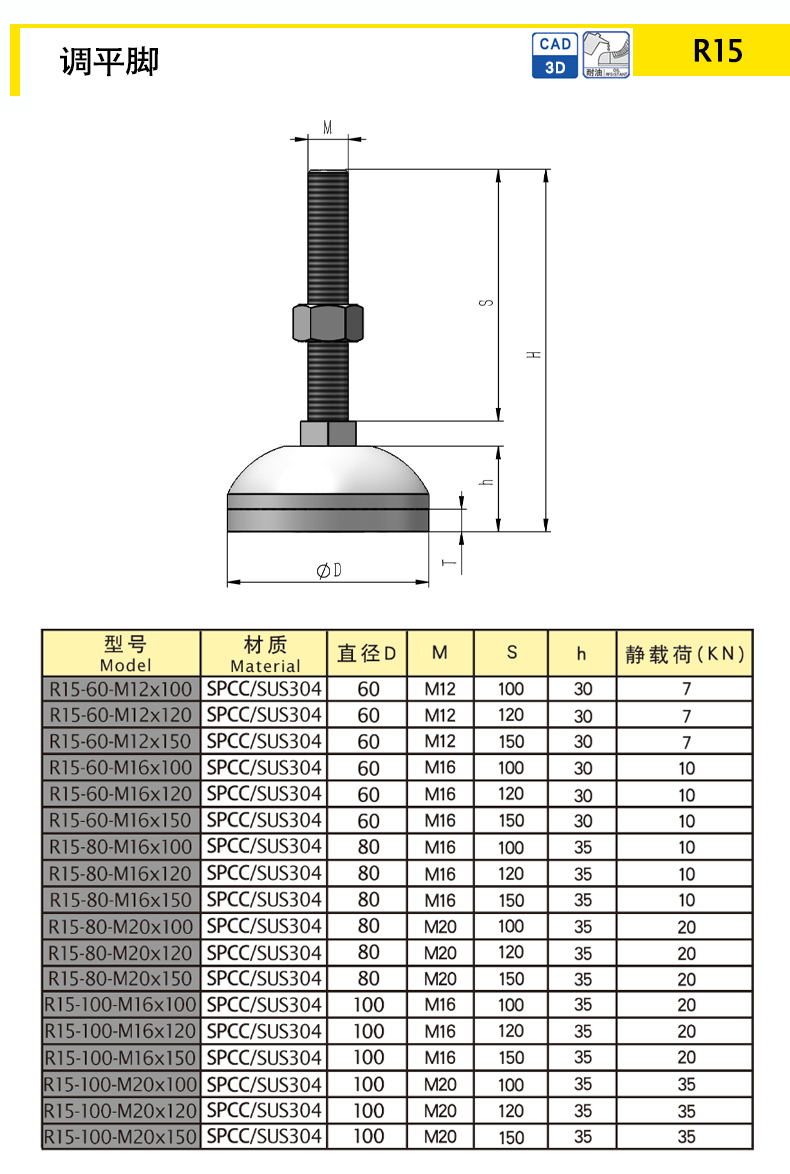

Product size diagram
Product size and properties
Model Number Material Diameter M S K H h h1 H1 Weight (g) Static Load (KN) 3D DRAWINGS
R15-60-M12x100 SPCC/SUS304 60 M12 100 / 131 30 / / / 7
R15-60-M12x120 SPCC/SUS304 60 M12 120 / 151 30 / / / 7
R15-60-M12x150 SPCC/SUS304 60 M12 150 / 181 30 / / / 7
R15-60-M16x100 SPCC/SUS304 60 M16 100 / 131 30 / / / 10
R15-60-M16x120 SPCC/SUS304 60 M16 120 / 151 30 / / / 10
R15-60-M16x150 SPCC/SUS304 60 M16 150 / 181 30 / / / 10
R15-80-M16x100 SPCC/SUS304 80 M16 100 / 140 35 / / / 10
R15-80-M16x120 SPCC/SUS304 80 M16 120 / 160 35 / / / 10
R15-80-M16x150 SPCC/SUS304 80 M16 150 / 190 35 / / / 10
R15-80-M20x100 SPCC/SUS304 80 M20 100 / 140 35 / / / 20
R15-80-M20x120 SPCC/SUS304 80 M20 120 / 160 35 / / / 20
R15-80-M20x150 SPCC/SUS304 80 M20 150 / 190 35 / / / 20
R15-100-M16x100 SPCC/SUS304 100 M16 100 / 143 35 / / / 20
R15-100-M20x100 SPCC/SUS304 100 M20 100 / 143 35 / / / 35
R15-100-M16x120 SPCC/SUS304 100 M16 120 / 163 35 / / / 20
R15-100-M20x120 SPCC/SUS304 100 M20 120 / 163 35 / / / 35
R15-100-M16x150 SPCC/SUS304 100 M16 150 / 193 35 / / / 20
R15-100-M20x150 SPCC/SUS304 100 M20 150 / 193 35 / / / 35
characteristic

Seat/Screw: SPCC/SUS 304

Pad: Rubber (NBR),Flame retardant, non-toxic

Shockproof Anti-rust, anti-skid, alkali-resistant, wear-resistant and oil-resistant.
