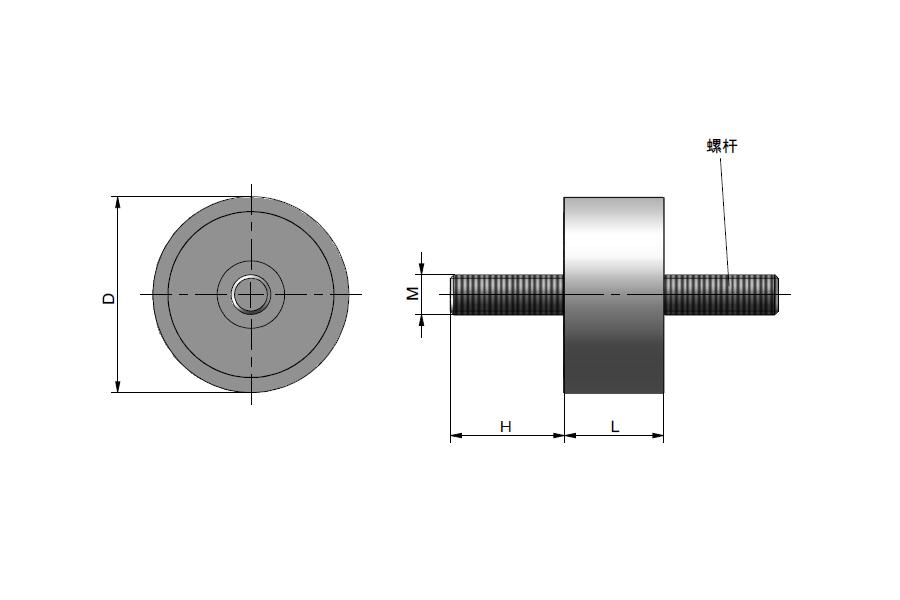

Product size diagram
Product size and properties
| Model Number | Material  | Diameter | D4 | Length | Height | T | M | A | B | C | D5 | K | Maximum load (N) | Optimum compression（mm） |
3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| J01-8-8 | Rubber | 8 | / | 8 | 6 | / | M3 | / | / | / | / | / | 65 | 1.5 | |
| J01-10-10 | Rubber | 10 | / | 10 | 10 | / | M4 | / | / | / | / | / | 85 | 2 | |
| J01-10-15 | Rubber | 10 | / | 15 | 10 | / | M4 | / | / | / | / | / | 55 | 2 | |
| J01-15-10 | Rubber | 15 | / | 10 | 10 | / | M5 | / | / | / | / | / | 195 | 2 | |
| J01-15-15 | Rubber | 15 | / | 15 | 10 | / | M5 | / | / | / | / | / | 120 | 2 | |
| J01-20-15 | Rubber | 20 | / | 15 | 18 | / | M6 | / | / | / | / | / | 350 | 2 | |
| J01-20-20 | Rubber | 20 | / | 20 | 18 | / | M6 | / | / | / | / | / | 255 | 2 | |
| J01-20-25 | Rubber | 20 | / | 25 | 18 | / | M6 | / | / | / | / | / | 305 | 2 | |
| J01-25-15 | Rubber | 25 | / | 15 | 18 | / | M6 | / | / | / | / | / | 680 | 2 | |
| J01-25-20 | Rubber | 25 | / | 20 | 18 | / | M6 | / | / | / | / | / | 595 | 2 | |
| J01-25-30 | Rubber | 25 | / | 30 | 18 | / | M6 | / | / | / | / | / | 555 | 2.5 | |
| J01-30-15 | Rubber | 30 | / | 15 | 20 | / | M8 | / | / | / | / | / | 530 | 2 | |
| J01-30-30 | Rubber | 30 | / | 30 | 20 | / | M8 | / | / | / | / | / | 840 | 2.5 | |
| J01-40-20 | Rubber | 40 | / | 20 | 23 | / | M8 | / | / | / | / | / | 1495 | 2 | |
| J01-40-30 | Rubber | 40 | / | 30 | 23 | / | M8 | / | / | / | / | / | 1520 | 2.5 | |
| J01-40-40 | Rubber | 40 | / | 40 | 23 | / | M8 | / | / | / | / | / | 1615 | 3 |
 |
| J01-50-20 | Rubber | 50 | / | 20 | 28 | / | M10 | / | / | / | / | / | 3580 | 2 | |
| J01-50-30 | Rubber | 50 | / | 30 | 28 | / | M10 | / | / | / | / | / | 2565 | 2.5 | |
| J01-50-40 | Rubber | 50 | / | 40 | 28 | / | M10 | / | / | / | / | / | 2430 | 3 | |
| J01-50-50 | Rubber | 50 | / | 50 | 28 | / | M10 | / | / | / | / | / | 2190 | 3 | |
| J01-60-30 | Rubber | 60 | / | 30 | 28 | / | M12 | / | / | / | / | / | 3495 | 2.5 | |
| J01-60-40 | Rubber | 60 | / | 40 | 28 | / | M12 | / | / | / | / | / | 3325 | 2.5 | |
| J01-70-45 | Rubber | 70 | / | 45 | 27 | / | M12 | / | / | / | / | / | 3995 | 3 | |
| J01-75-40 | Rubber | 75 | / | 40 | 37 | / | M12 | / | / | / | / | / | 4495 | 3 | |
| J01-75-55 | Rubber | 75 | / | 55 | 37 | / | M12 | / | / | / | / | / | 4395 | 3.5 | |
| J01-100-40 | Rubber | 100 | / | 40 | 41 | / | M16 | / | / | / | / | / | 7995 | 3 | |
| J01-100-55 | Rubber | 100 | / | 55 | 41 | / | M16 | / | / | / | / | / | 7495 | 3.5 | |
| J01-100-75 | Rubber | 100 | / | 75 | 41 | / | M16 | / | / | / | / | / | 6995 | 4 |
characteristic
Used for fixed or elastic fastener equipment
Available for various applications,especially for machinery of elastic suspension and vibration isolation and other machine. Such as: Genset,Pump ,Fans/Air Conditioners,Drying machine,electric motor,measuring equipmentetc.
Simple to install,complete specifications, outter diameter from 8mm to 150mm can make different needs
