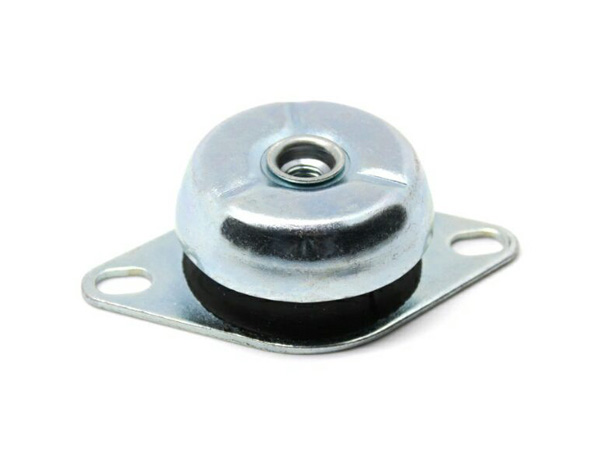

Bell Type Rubber Damper

J08

Bell Type Rubber Damper

Rubber

application:Genset Compressors electro motor Fans/Air Conditioners Pump ndustrial and mining machinery etc.

catalogue CAD data

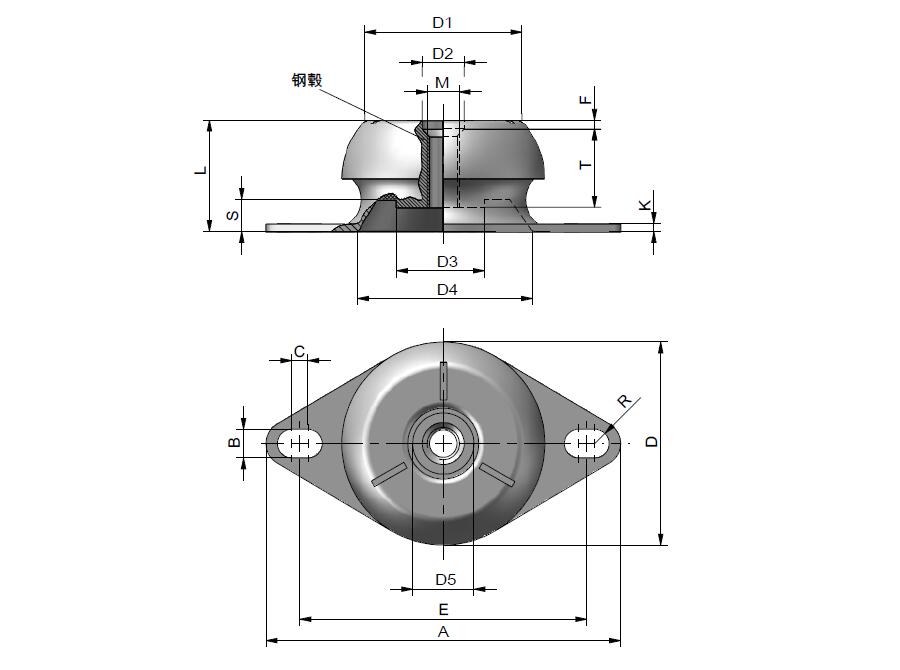

Product size diagram
Product size and properties
Model Number Material bottomDiameter bottomD4 bottomLength bottomHeight bottomT bottomM bottomA bottomB bottomC bottomD5 bottomK bottomMaximum load (N) bottomOptimum compression(mm) bottom 3D DRAWINGS
J08-60-M10 Rubber 64 / 35 / / M10 110 9 5 / 2.5 240 2.3
J08-80-M12 Rubber 79 / 35 / / M12 135 11 4 / 3 295 2.3
J08-90-M12 Rubber 95 / 35 / / M12 150 11 4 / 3 325 3.5
J08-110-M16 Rubber 106 / 38 / / M16 175 14 4 / 4 545 3.5
J08-125-M16 Rubber 125 / 43 / / M16 192 14 6 / 4 895 4
J08-150-M20 Rubber 150 / 50 / / M20 218 14 4 / 4 1645 6
characteristic

Feature :Bell design, large bearing capacity

Perfect combination of rubber and metal parts. Realize better shock absorption

The design of the product has a high vibration isolation and shock protection function, can be used for fixed or moved generator sets
