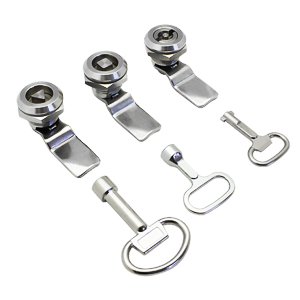

Cam Lock

EC14

Cam Lock

Polished

application:Power distribution cabinet, electrical cabinet, instrument cabinet

catalogue CAD data

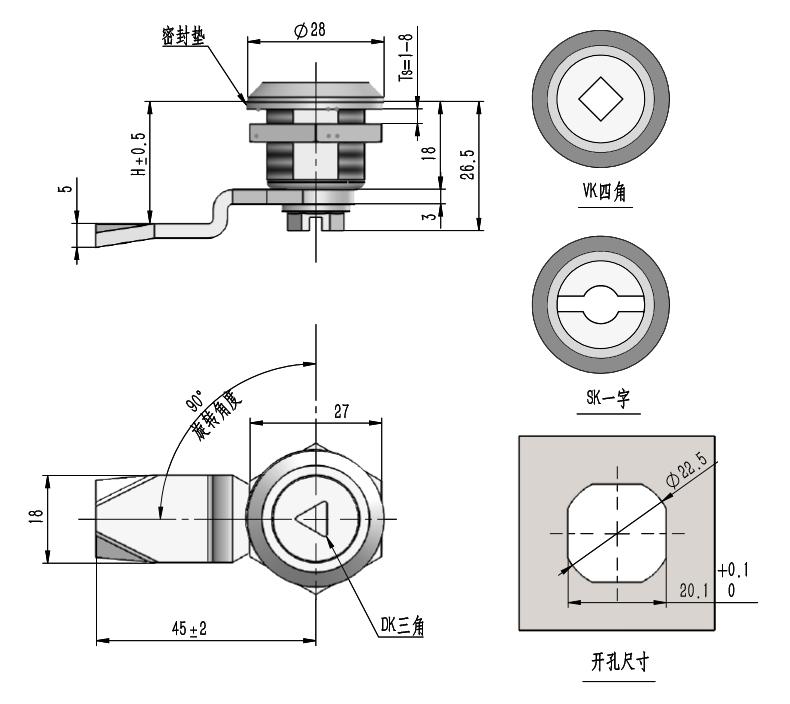

Product size diagram
Product size and properties
Model Number Function bottomMaterial bottomLength(mm) bottomColor bottomWith Key bottomFinish bottomWeight (g) bottom 3D DRAWINGS
EC14-1DK Cylindrical Lock SUS304 / Silver Optional Polished /
EC14-2DK Cylindrical Lock SUS304 / Silver Optional Polished /
EC14-3DK Cylindrical Lock SUS304 / Silver Optional Polished /
EC14-1VK Cylindrical Lock SUS304 / Silver Optional Polished /
EC14-2VK Cylindrical Lock SUS304 / Silver Optional Polished /
EC14-3VK Cylindrical Lock SUS304 / Silver Optional Polished /
EC14-1SK Cylindrical Lock SUS304 / Silver Optional Polished /
EC14-2SK Cylindrical Lock SUS304 / Silver Optional Polished /
EC14-3SK Cylindrical Lock SUS304 / Silver Optional Polished /
characteristic
Applicable door thickness: 1-5mm
Structural function: the rotation angle realizes opening or closing
Installation: Determine the size according to the actual hole spacing specification of the product; then fix it by rivets, screws, spot welding, etc.
