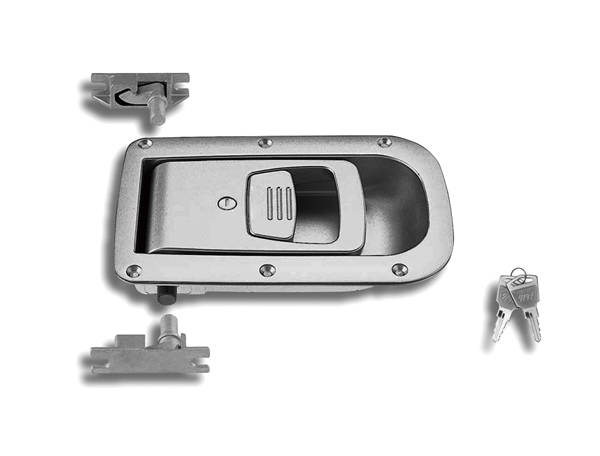

Paddle Handle Latch

M106

Paddle Handle Latch

Stamping,precision casting

application:Van body parts/container,cargo box,generating set,refrigerated container

catalogue CAD data

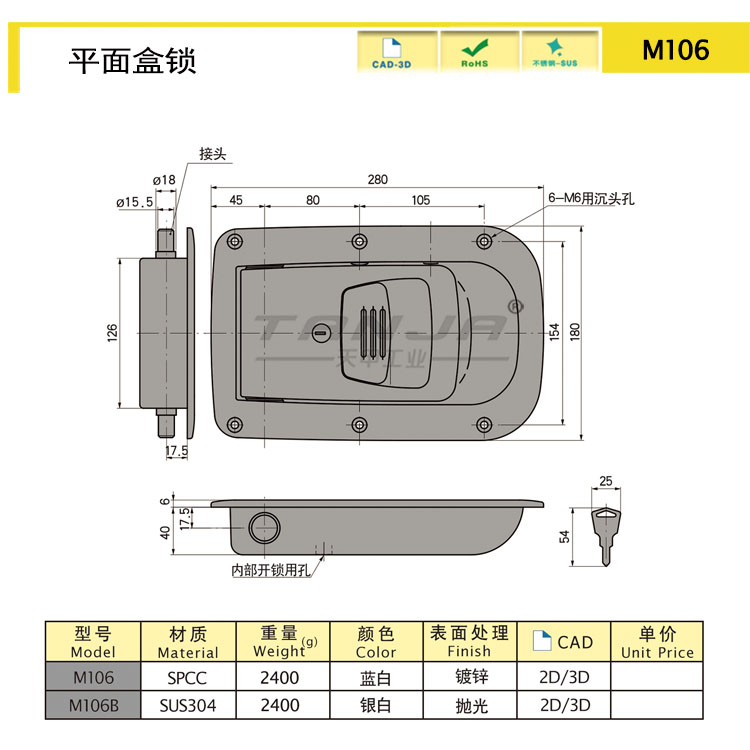

Product size diagram
Product size and properties
Model Number Function bottomMaterial bottomLength(mm) bottomColor bottomWith Key bottomFinish bottomWeight (g) bottom 3D DRAWINGS
M106B Paddle Handle Latch SUS304 250 Silver Yes Polished 2400
characteristic

1.SUS304,corrosion resistance

2.Hook and positioning made by forging,impact resistace

3.Surface mounting,save space

4.Used for heavy duty door

5.Should matche the tube by yoursely

Available services

Installation:Concealed installation

Must choose
Please select the required product catalogue
Interested product
Company name example)Yantai Tanja Precision Machinery Co Ltd
Name of department example)Development Department
Name
Address
Telephone example)0535-621-7008
Fax example)0535-2277515-803
Email

Similar product recommendation
Product Name
Paddle Handle Latch
Free download of CAD drawings

More information

If you have more technical advice,Please call
0535-6217008-801
