Pressing Type Handle

M01B

Stainless steel precision casting

application：Oven,food&medical equipment precision instrument case cover and other airtight case

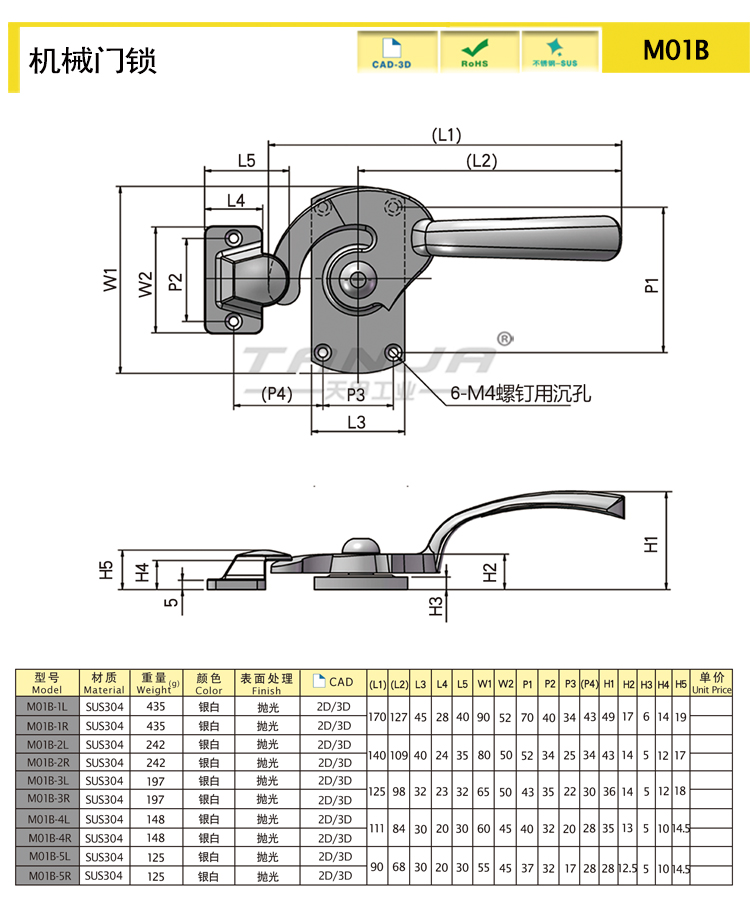

Product size diagram

Product size and properties

Model Number	Function	Material	Length（mm）	Color	With Key	Finish	Weight (g)
M01B-1L	Handle Lock	SUS304	171	Silver	/	Polished	435
M01B-1R	Handle Lock	SUS304	171	Silver	/	Polished	435
M01B-2L	Handle Lock	SUS304	152.4	Silver	/	Polished	242
M01B-2R	Handle Lock	SUS304	152.4	Silver	/	Polished	242
M01B-3L	Handle Lock	SUS304	132.2	Silver	/	Polished	197
M01B-3R	Handle Lock	SUS304	132.2	Silver	/	Polished	197
M01B-4L	Handle Lock	SUS304	116.3	Silver	/	Polished	148
M01B-4R	Handle Lock	SUS304	116.3	Silver	/	Polished	148
M01B-5L	Handle Lock	SUS304	96.9	Silver	/	Polished	125
M01B-5R	Handle Lock	SUS304	96.9	Silver	/	Polished	125

characteristic

Cast stainless steel,turning presing style closure,corrosion-resistant,the left-hand or right hand use(drawings show the right-hand use)

Available services

Installation:Exposed Mount
