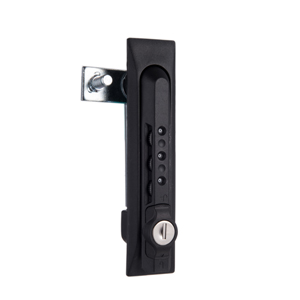

Panel Cabinet Lock

EF12

Panel Cabinet Lock

Plastic

application：Case, cabinet, electrical box, instrument box, etc

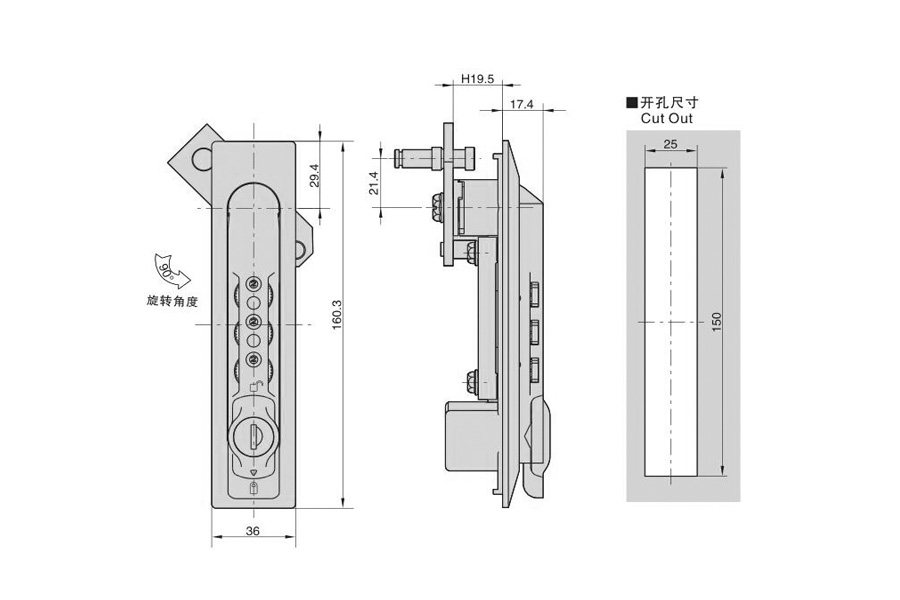

Product size diagram

Product size and properties

Model Number	Function	Material	Length（mm）	Color	With Key	Finish	Weight (g)	3D DRAWINGS
EF12	Flat Lock	Plastic	160.3	Matte Black	Yes	Powder Coating	269

characteristic

Material:PA66 Lock case,lock back,galvanized stamping plate ,locking plate

Surface treatment :Sandblast grain black

Applicable thickness of door plate: 1~5mm

Remarks: the locking plate is 8 x 8
