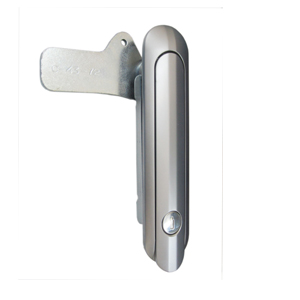

Panel Cabinet Lock

EF05

Panel Cabinet Lock

Zinc Alloy

application：Case, cabinet, electrical box, instrument box, etc

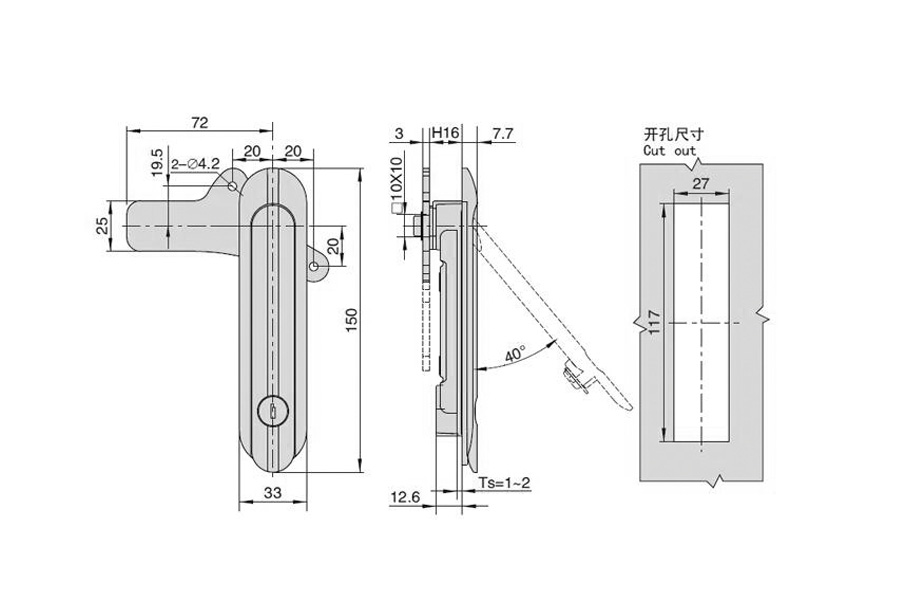

Product size diagram

Product size and properties

Model Number	Function	Material	Length（mm）	Color	With Key	Finish	Weight (g)	3D DRAWINGS
EF05	Flat Lock	Zinc Alloy	150	Satin Chrome	Yes	Chrome Plated	305

characteristic

Material:Zinc Alloy lock case, lock back, Shaft, lock cylinder

Surface treatment:Chrome Plated

Structure features: open handle up, drive the lock plate 90 ° rotating open.

Applicable thickness of door plate: 1~5mm

Note: the opening port of the locking piece is 10X10

Available services

Product Name
Panel Cabinet Lock

More information

If you have more technical advice，Please call
0535-6217008-801
