Draw Latch

A143

Draw Latch

Electrophoretic paint/Zinc plated

application:Vehicles,Medical equipment engineering machinery

catalogue CAD data

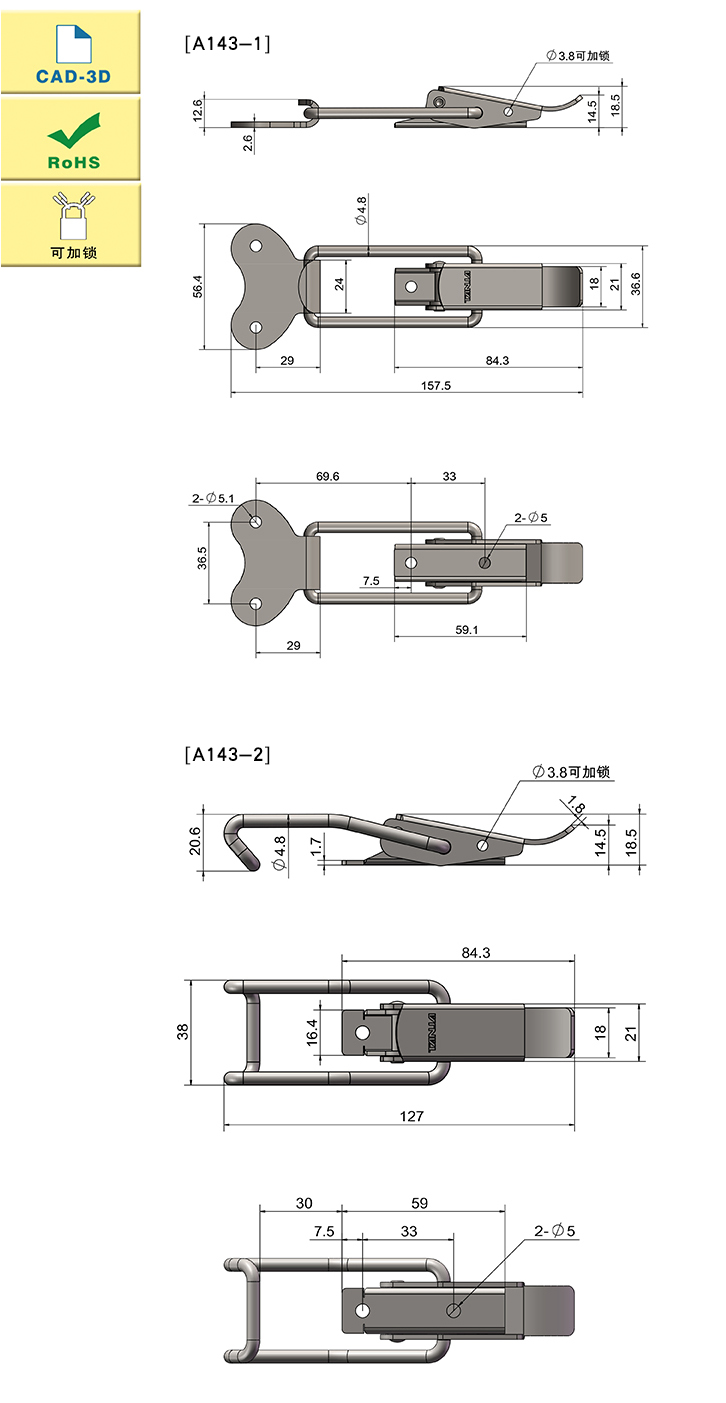

Product size diagram

Product size and properties
Model Number Function bottomLength(mm) bottomMaterial Weight (g) bottomLocking Force(N) bottomUltimate Load(N) bottom 3D DRAWINGS
A143-1 Lockable 157.5 SPCC 116 600 5000
A143-2 Damping,Lockable 127 SPCC 90 600 5000
characteristic

A143-2: Spring to reduce vibration&apply prepressing

A143-2: Without catch, convenient to operate

Available services

With side hole,can plug into pin to prevent loosening.

Statement: The "Locking Force" in the chart is the best locking force determined by the test (meaning that adults can easily open and close with bare hands); the hole distance between the hook and the latch body in the picture is the unstressed dimension, which needs to be adjusted hole spacing by yourself to meet different locking force requirements.
