Safety & Damping Toggle Latch

A148

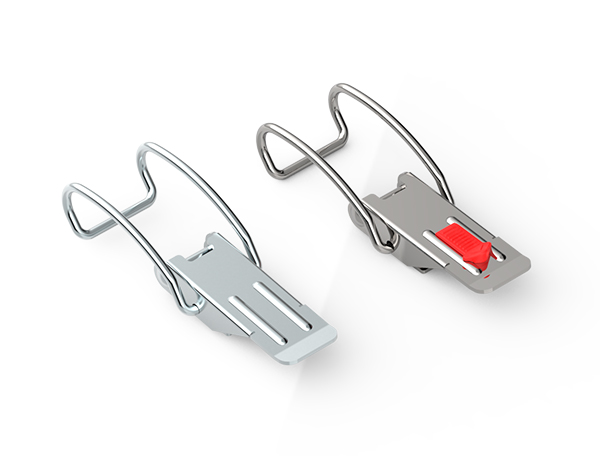

Safety & Damping Toggle Latch

Zinc plated / Polished

application:Vehicle / Medical Machinery / Construction Machinery

catalogue CAD data

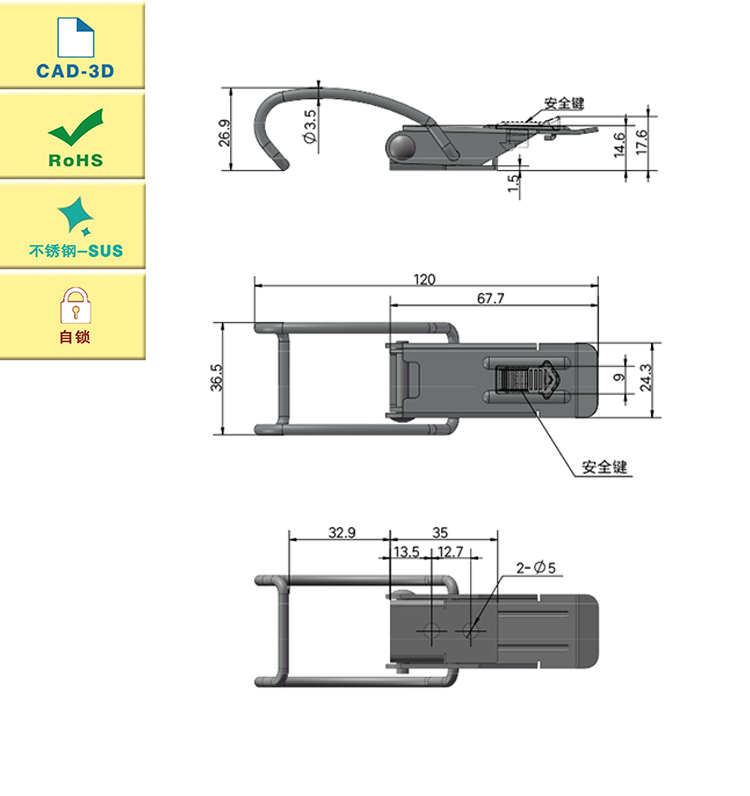

Product size diagram
Product size and properties
Model Number Function bottomLength(mm) bottomMaterial Weight (g) bottomLocking Force(N) bottomUltimate Load(N) bottom 3D DRAWINGS
A148-1 Damping 120 SPCC 60 350 3000
A148B-1 Damping 120 SUS304 58 350 3000
A148-2 Damping,Self lock 120 SPCC 60 350 3000
A148B-2 Damping,Self lock 120 SUS304 58 350 3000
characteristic

Arc spring steel wire makes the toggle latch have elastic prepressure and vibration damping function

self-locking design, can prevent accidental opening.

Available services

No need to use hooks, more convenient to use.

Statement: The "Locking Force" in the chart is the best locking force determined by the test (meaning that adults can easily open and close with bare hands); the hole distance between the hook and the latch body in the picture is the unstressed dimension, which needs to be adjusted hole spacing by yourself to meet different locking force requirements.
