Flexible & Damping Toggle Latch

A138

Flexible & Damping Toggle Latch

Zinc plated/Polish

application:Vehicles,Medical equipment engineering machinery

catalogue CAD data

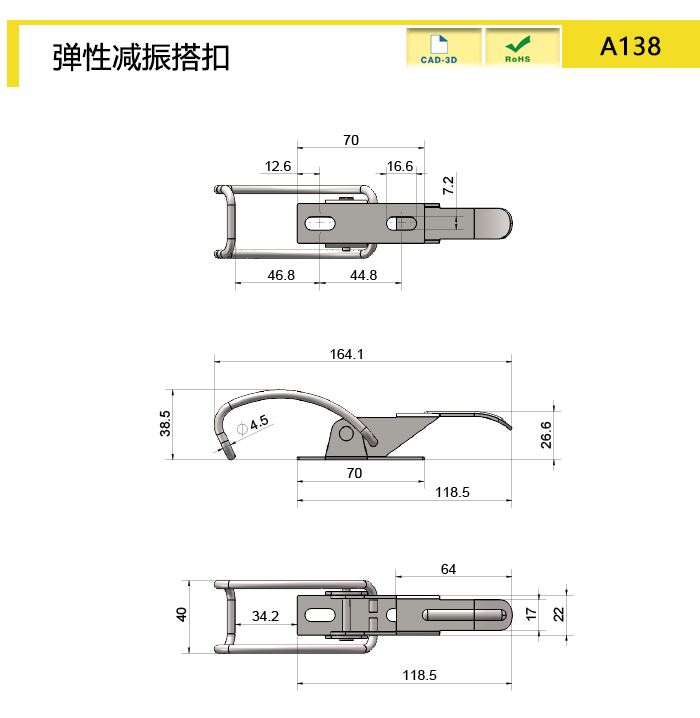

Product size diagram
Product size and properties

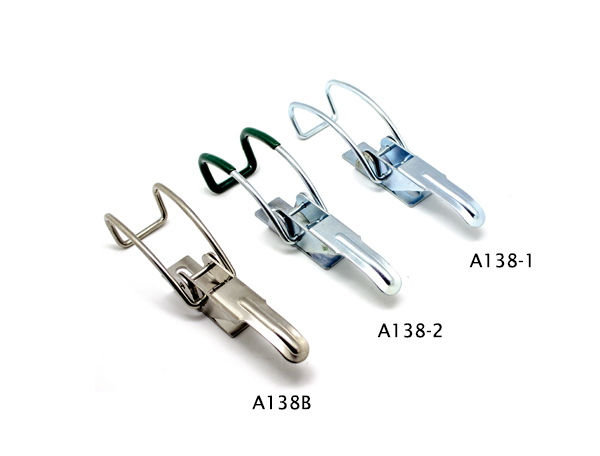

Model Number Function bottomLength(mm) bottomMaterial Weight (g) bottomLocking Force(N) bottomUltimate Load(N) bottom 3D DRAWINGS
A138-1 Damping 164 SPCC 108 600 4000
A138-2 Damping 164 SPCC 112 600 4000
A138B Damping 164 SUS304 108 600 4000
characteristic
Cambered spring wire to apply prepressing & reduce vibration

The hanging ring is partially dipped in plastic to prevent fricon and effectively protect the contact surface.

Available services

Without catch,  convenient to operate.

Statement: The "Locking Force" in the chart is the best locking force determined by the test (meaning that adults can easily open and close with bare hands); the hole distance between the hook and the latch body in the picture is the unstressed dimension, which needs to be adjusted hole spacing by yourself to meet different locking force requirements.
