Heavy Duty Adjustable Toggle Latch

4033B

Heavy Duty Adjustable Toggle Latch

Polished

application:Small & medium sized case cover, mechanical equipment,vehicles

catalogue CAD data

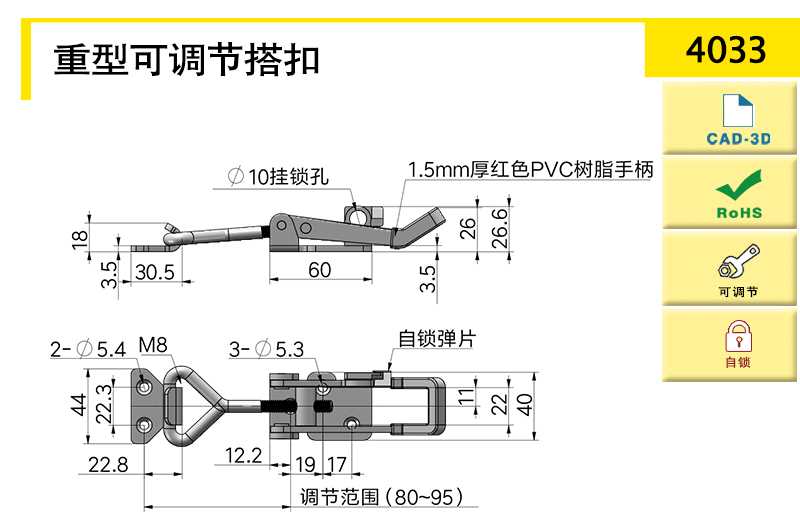

Product size diagram
Product size and properties
Model Number Function bottomLength(mm) bottomMaterial Weight (g) bottomLocking Force(N) bottomUltimate Load(N) bottom 3D DRAWINGS
4033B Adjustable,Self lock 165-190 SUS304 290 3000 17000
characteristic
Adjustable latch, convenient for operation.
Self-locking device prevent the latch accidental opening.
Available services

With lockhole, padlock or lead seal is available.

Statement: The "Locking Force" in the chart is the best locking force determined by the test (meaning that adults can easily open and close with bare hands); the hole distance between the hook and the latch body in the picture is the unstressed dimension, which needs to be adjusted hole spacing by yourself to meet different locking force requirements.
