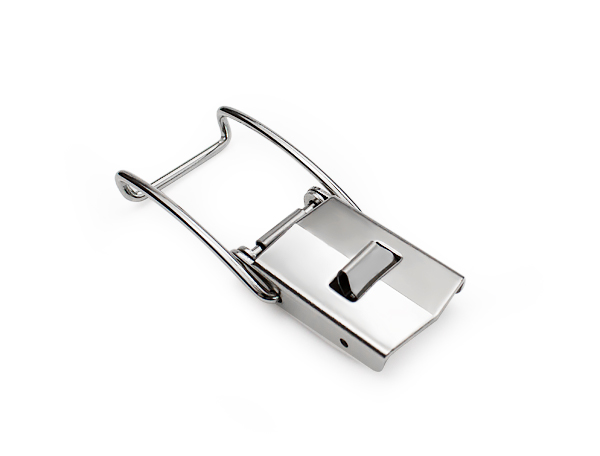

Safety Toggle Latch

A96B

Safety Toggle Latch

Polish

application:Small &medium sized suitcase/mechanical equipment/vehicle

catalogue CAD data

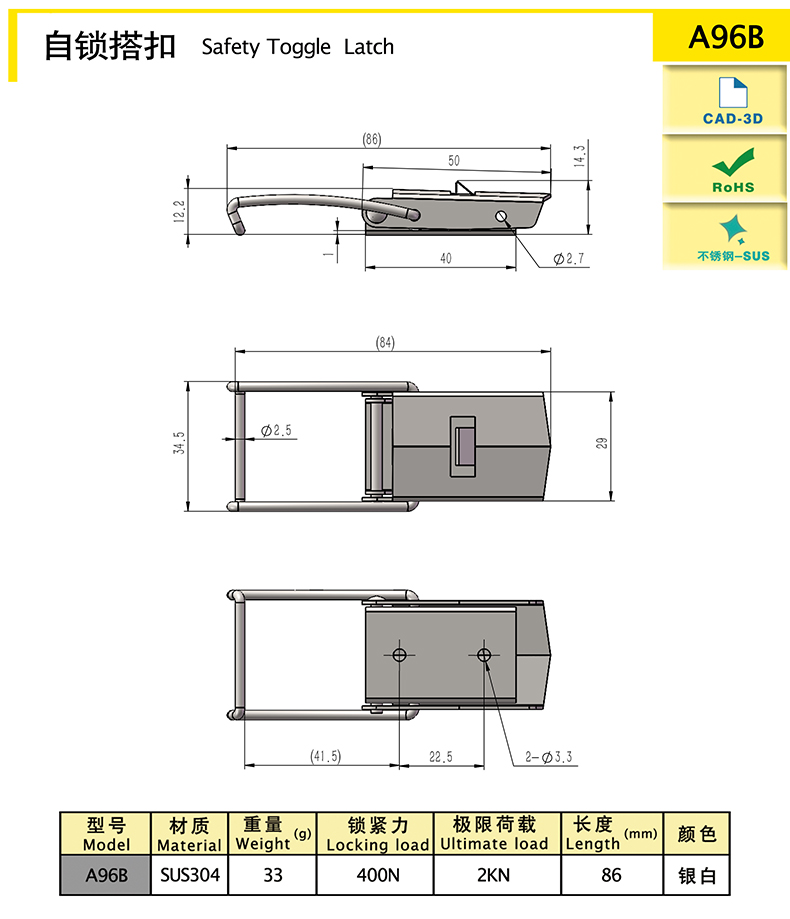

Product size diagram
Product size and properties
Model Number Function bottomLength(mm) bottomMaterial Weight (g) bottomLocking Force(N) bottomUltimate Load(N) bottom 3D DRAWINGS
A96B Damping,self lock 86 SUS304 33 400 2000
characteristic
With lockhole, padlock or lead seal to prevent loosening.
Available services
Statement: The "Locking Force" in the chart is the best locking force determined by the test (meaning that adults can easily open and close with bare hands); the hole distance between the hook and the latch body in the picture is the unstressed dimension, which needs to be adjusted hole spacing by yourself to meet different locking force requirements.
