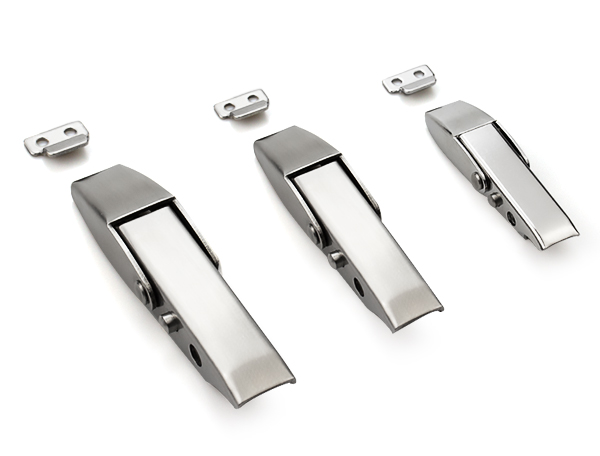

Concealed Toggle Latch

A108

Concealed Toggle Latch

Brushed

application:Advertising box,food & medical equipment

catalogue CAD data

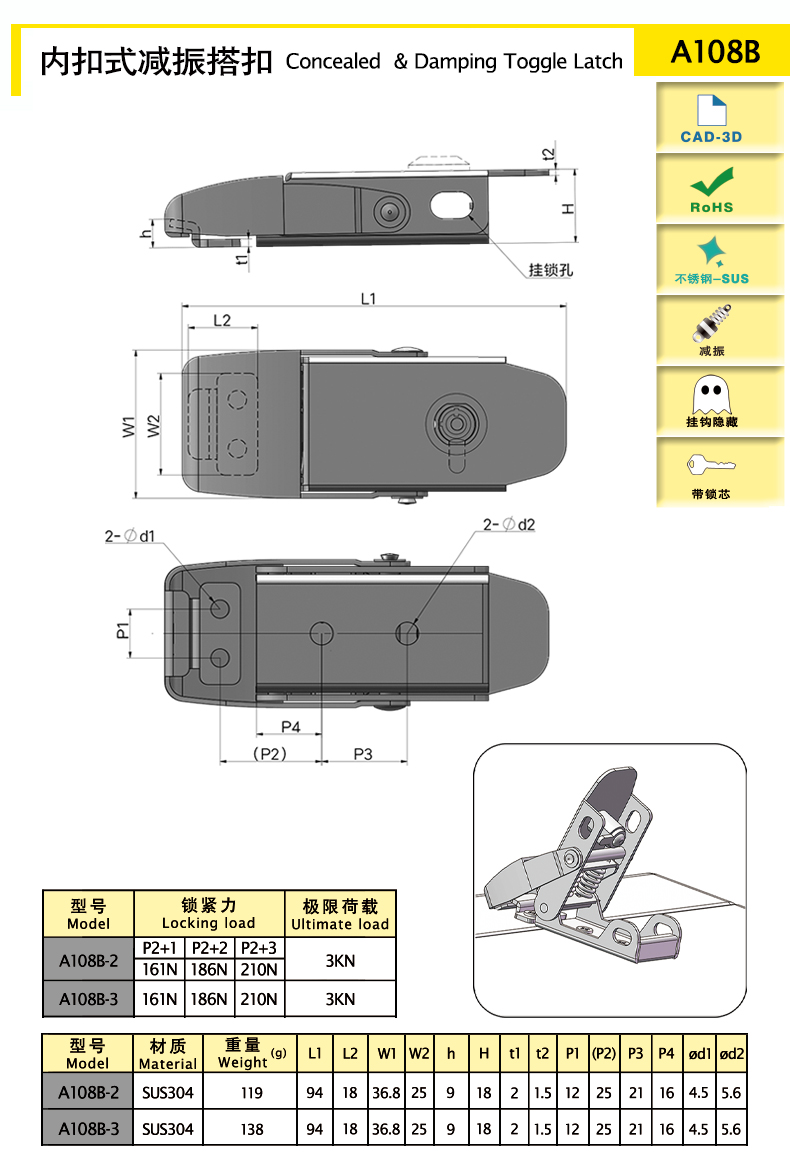

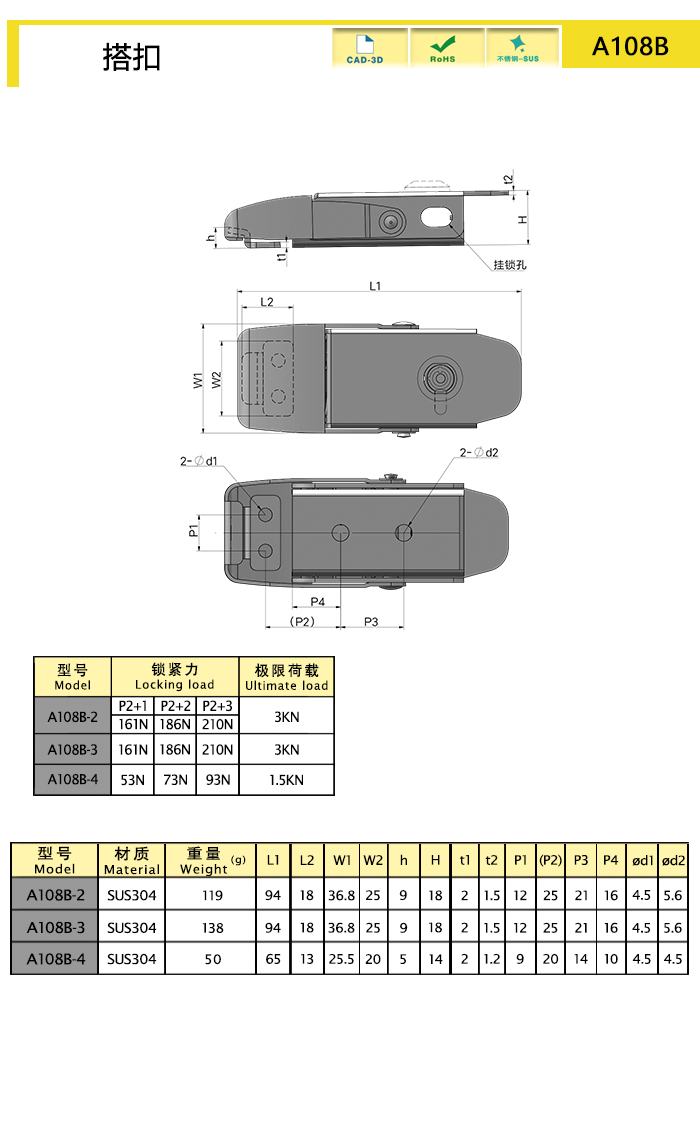

Product size diagram
Product size and properties
Model Number Function bottomLength(mm) bottomMaterial Weight (g) bottomLocking Force(N) bottomUltimate Load(N) bottom 3D DRAWINGS
A108B-2 Concealed,Damping 94.2 SUS304 119 161 3000
A108B-3 Damping,Lockable,Concealed 93.8 SUS304 138 161 3000
characteristic

Spring inside to reduce vibration,can keep prepressing to connection

With side hole,can plug into pin to prevent loosening

Available services

Concealed toggle latch,better visual effects, compact structure

With lock cylinder & key, anti-theft,enhancing security.

Statement: The "Locking Force" in the chart is the best locking force determined by the test (meaning that adults can easily open and close with bare hands); the hole distance between the hook and the latch body in the picture is the unstressed dimension, which needs to be adjusted hole spacing by yourself to meet different locking force requirements.
