Concealed & Adjustable Toggle Latch

A56

Concealed & Adjustable Toggle Latch

Zinc plated / Polish

application:Vehicles, Medical equipment, Aircraft equipment & engineering machinery

catalogue CAD data

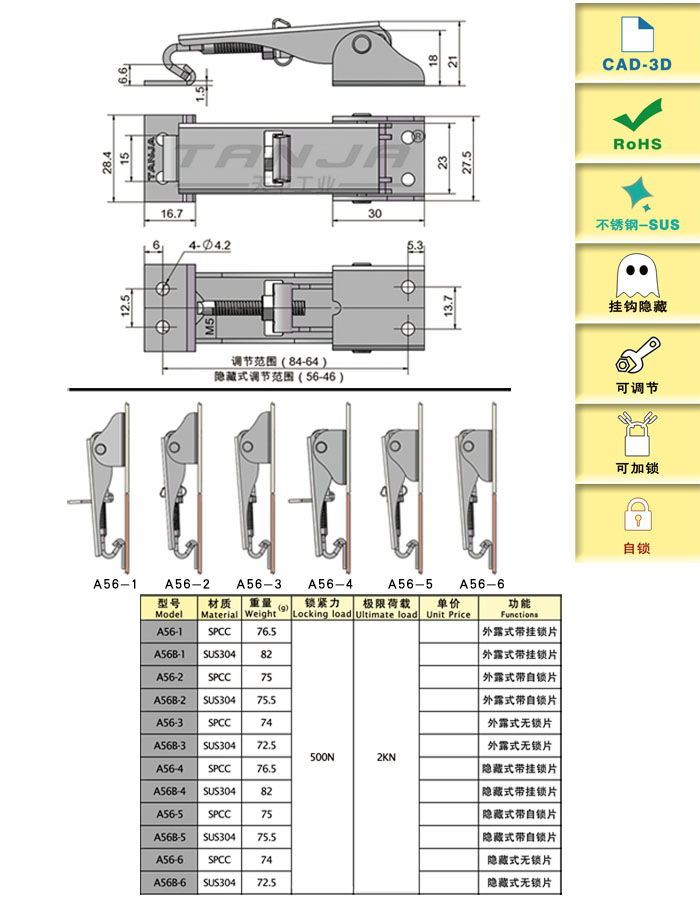

Product size diagram


Product size and properties
Model Number Function bottomLength(mm) bottomMaterial Weight (g) bottomLocking Force(N) bottomUltimate Load(N) bottom 3D DRAWINGS
A56-1 Adjustable,With lockhole 81.3 SPCC 76.5 500 2000
A56B-1 Adjustable,With lockhole 81.3 SUS304 82 500 2000
A56-2 Adjustable,Self lock 81.5 SPCC 75 500 2000
A56B-2 Adjustable,Self lock 81.5 SUS304 75.5 500 2000
A56-3 Adjustable 81.6 SPCC 74 500 2000
A56B-3 Adjustable 81.6 SUS304 72.5 500 2000
A56-4 Adjustable,Concealed 81.4 SPCC 76.5 500 2000
A56B-4 Adjustable,Concealed 81.4 SUS304 82 500 2000
A56-5 Adjustable,Concealed,Self lock 82.2 SPCC 75 500 2000
A56B-5 Adjustable,Concealed,Self lock 82.2 SUS304 75.5 500 2000
A56-6 Adjustable,Concealed 82.6 SPCC 74 500 2000
A56B-6 Adjustable,Concealed 82.6 SUS304 72.5 500 2000
characteristic

Concealed toggle latch can provide the ability to conceal all mounting hardware and latching functions under the handle. Under-center mechanism allows secure off-plane latching

A56-1 and A56-4 are padlockable version for enhancing security

A56-2 and A56-5 have self-locking design, can prevent accidental opening


Available services

Adjustable latch, convenient for operation.

Statement: The "Locking Force" in the chart is the best locking force determined by the test (meaning that adults can easily open and close with bare hands); the hole distance between the hook and the latch body in the picture is the unstressed dimension, which needs to be adjusted hole spacing by yourself to meet different locking force requirements.
