Concealed Toggle Latch

A128

Concealed Toggle Latch

Zinc plated / Polish

application:Vehicles, Medical equipment, Engineering machinery

catalogue CAD data

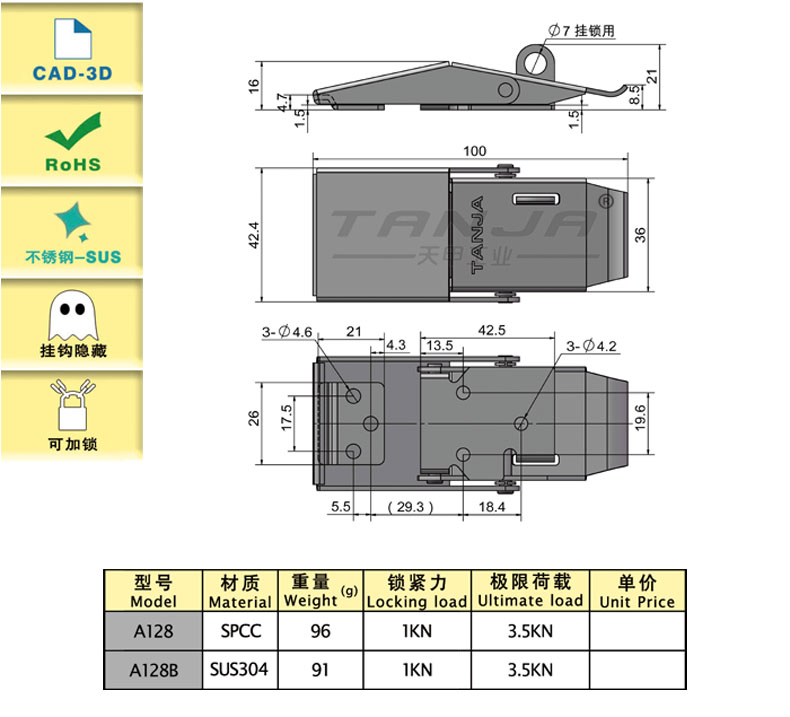

Product size diagram
Product size and properties
Model Number Function bottomLength(mm) bottomMaterial Weight (g) bottomLocking Force(N) bottomUltimate Load(N) bottom 3D DRAWINGS
A128 Concealed,With lockhole 100.2 SPCC 96 1000 3500
A128B Concealed,With lockhole 100.2 SUS304 91 1000 3500
characteristic

Spring resettle structure inside, can auto-reset

Available services

Concealed toggle latch,better visual effects,save installation space.

Statement: The "Locking Force" in the chart is the best locking force determined by the test (meaning that adults can easily open and close with bare hands); the hole distance between the hook and the latch body in the picture is the unstressed dimension, which needs to be adjusted hole spacing by yourself to meet different locking force requirements.
