Flexible & Damping Toggle Latch

A78

Flexible & Damping Toggle Latch

application:Toolbox, Engineering machine hood, Farm machinery

catalogue CAD data

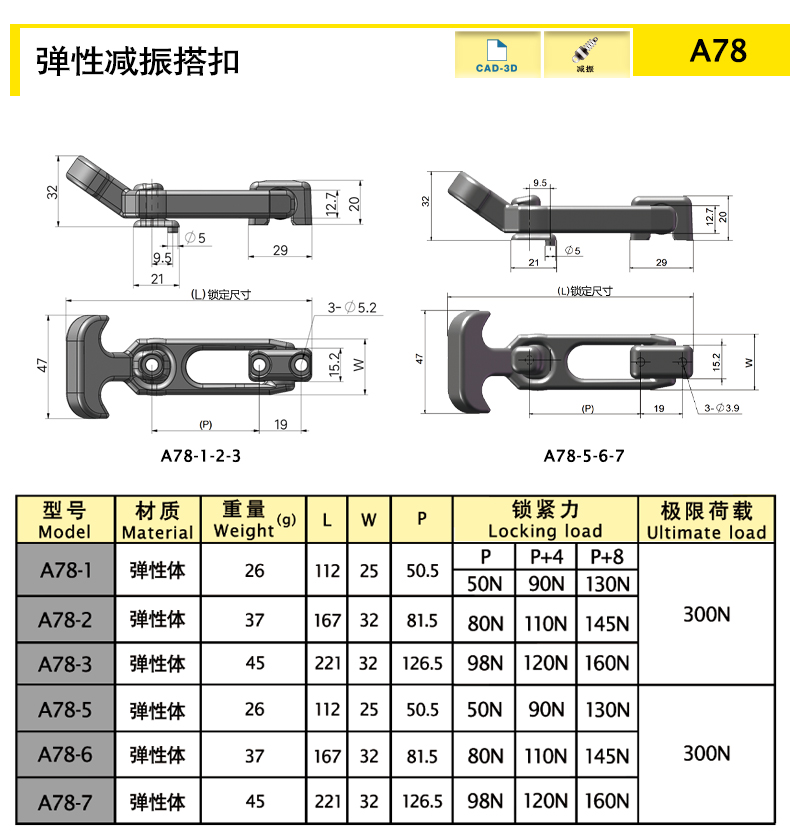

Product size diagram
Product size and properties
Model Number Function bottomLength(mm) bottomMaterial Weight (g) bottomLocking Force(N) bottomUltimate Load(N) bottom 3D DRAWINGS
A78-1 Damping 110 Elastomer 26 / 300
A78-2 Damping 160 Elastomer 37 / 300
A78-3 Damping 200 Elastomer 45 / 300
A78-5 Damping 110 Elastomer 26 / 300
A78-6 Damping 160 Elastomer 37 / 300
A78-7 Damping 200 Elastomer 45 / 300
characteristic

Latch body made of high quality elastomer to reduce vibration & apply prepressing

Available services
Statement: The "Locking Force" in the chart is the best locking force determined by the test (meaning that adults can easily open and close with bare hands); the hole distance between the hook and the latch body in the picture is the unstressed dimension, which needs to be adjusted hole spacing by yourself to meet different locking force requirements.
