Flexible & Damping Toggle Latch

A71B

Flexible & Damping Toggle Latch

Polish

application:Small &medium-sized case cover, Mechanical equipment, Vehicles

catalogue CAD data

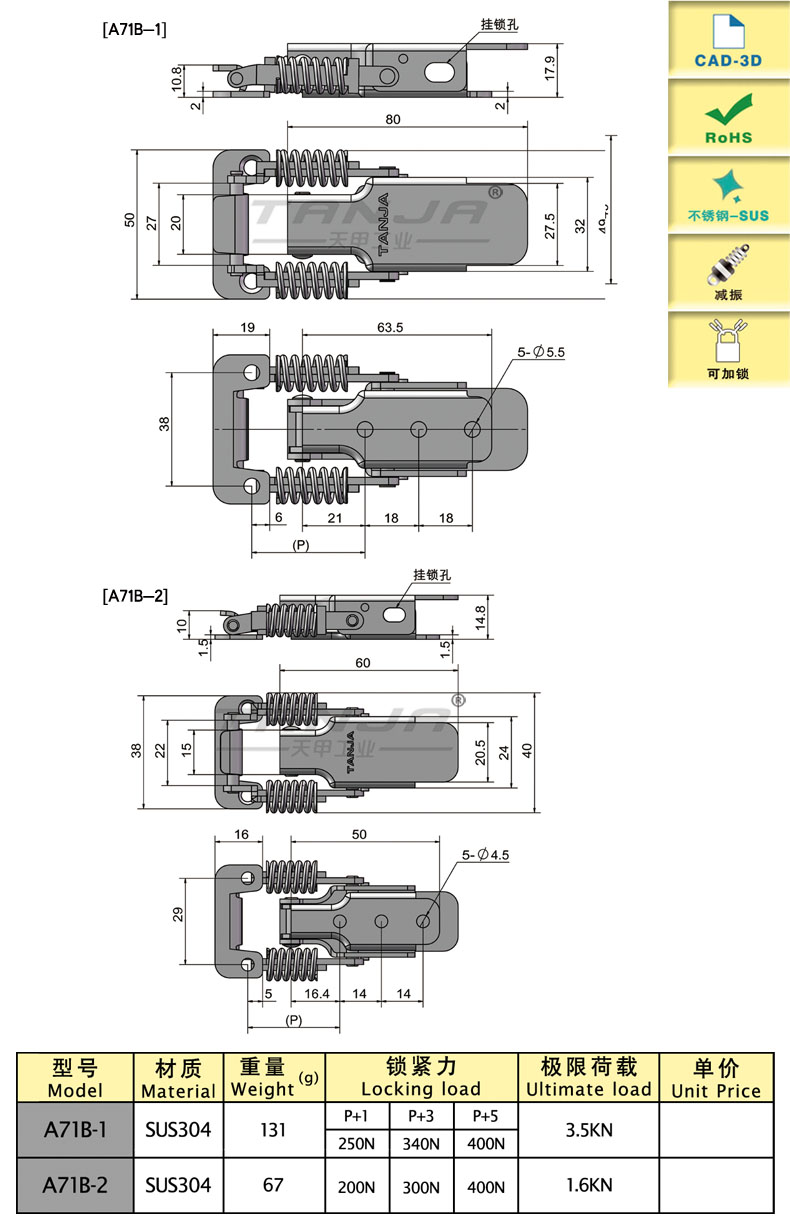

Product size diagram
Product size and properties
Model Number Function bottomLength(mm) bottomMaterial Weight (g) bottomLocking Force(N) bottomUltimate Load(N) bottom 3D DRAWINGS
A71B-1 Damping,With lockhole 104.5 SUS304 131 400 3500
A71B-2 Damping,With lockhole 81.8 SUS304 67 400 1600
characteristic

Spring to reduce vibration &apply prepressing

Available services

With side hole,padlock or lead seal is available to prevent loosening.

Statement: The "Locking Force" in the chart is the best locking force determined by the test (meaning that adults can easily open and close with bare hands); the hole distance between the hook and the latch body in the picture is the unstressed dimension, which needs to be adjusted hole spacing by yourself to meet different locking force requirements.
