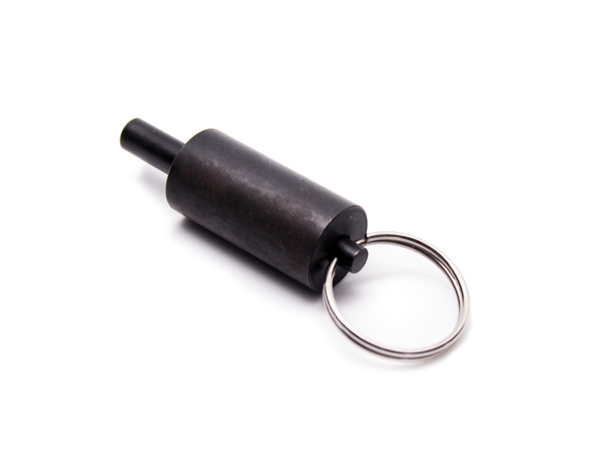

Pull Ring Index Plunger

S11

Pull Ring Index Plunger

Carbon Steel

application:Chemical / food product equipment and inspection instrument

catalogue CAD data

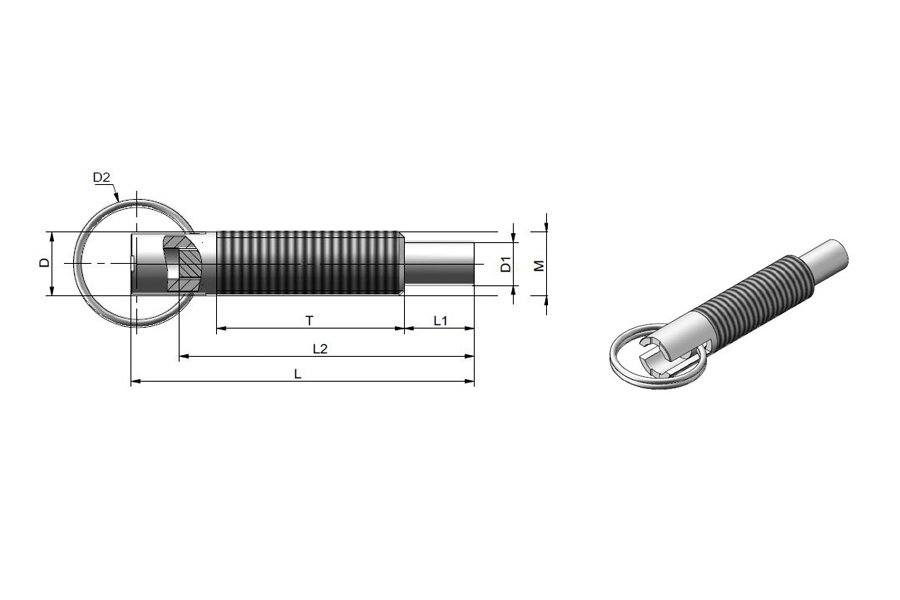

Product size diagram


Product size and properties
Model Number Material bottomD1 bottomLength L bottomHandle Diameter D bottomL1 bottomL2 bottomF bottomT bottomM bottomK bottomD2 bottomS bottomHeight bottomS1 S2 bottomT1 bottomM1 bottomC bottomA bottomD3 bottomB bottomMaximum load (N) bottomWeight (g) bottom 3D DRAWINGS
S11-8 Carbon Steel 8 65 12 13 53 / / / / 30 / 40 / / / / / / / / / /
characteristic

Surface treatment : oxidation blackened

Available services

1. Non-standard, Length can be customized; 2. Optional screws; 3. Ultrasonic cleaning and dust-free packaging.
