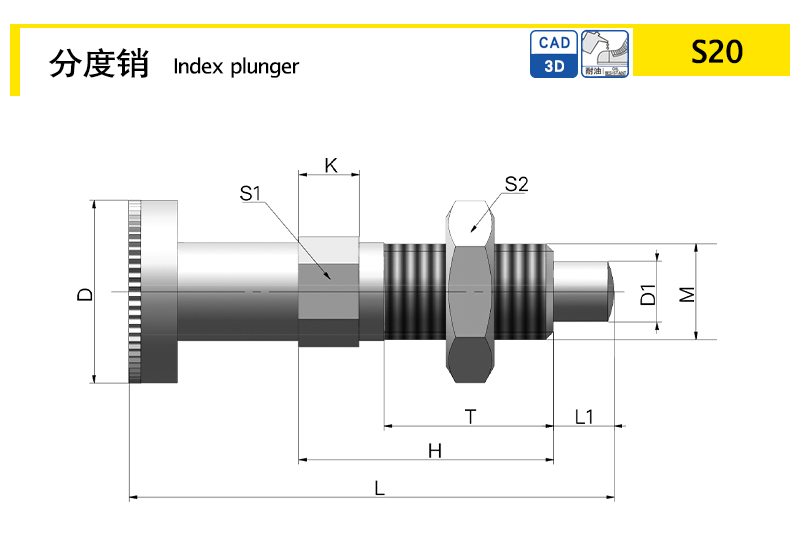

Product size diagram
Product size and properties
| Model Number | Material  | D1 | Length L | Handle Diameter D | L1 | L2 | F | T | M | K | D2 | S | Height | S1 | S2 | T1 | M1 | C | A | D3 | B | Maximum load (N) | Weight (g) |

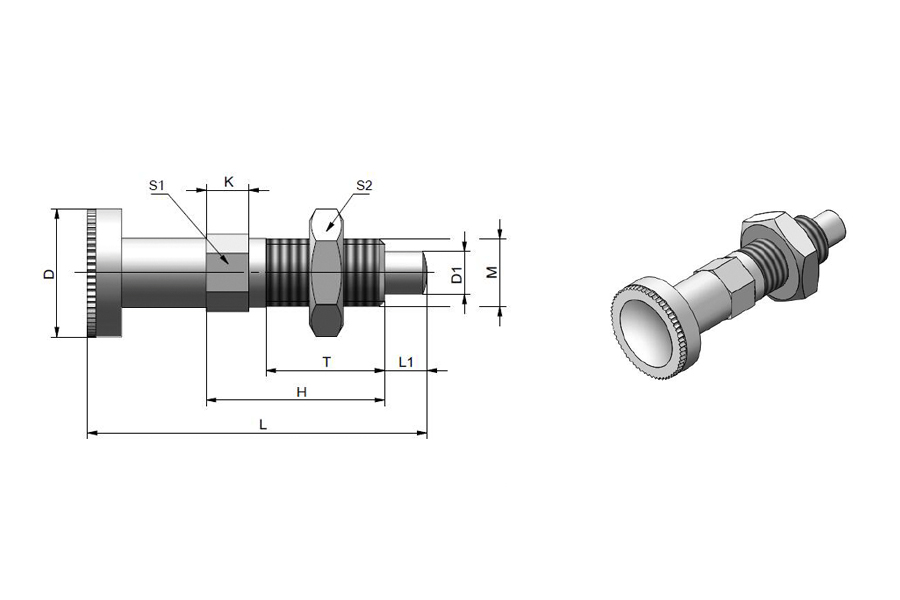

3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S20B-6 | SUS304 | 6 | 49 | 18 | 18 | / | / | 17 | M10 | 7.5 | / | / | 27.5 | 10 | / | / | / | / | / | / | / | 22 | 25 | |
| S20-6-S | Carbon Steel | 6 | 49 | 18 | 18 | / | / | 17 | M10 | 7.5 | / | / | 27.5 | 10 | / | / | / | / | / | / | / | 22 | 25 | |
| S20-6-B | Carbon Steel | 6 | 49 | 18 | 18 | / | / | 17 | M10 | 7.5 | / | / | 27.5 | 10 | / | / | / | / | / | / | / | 22 | 25 | |
| S20B-5 | SUS304 | 5 | 36 | 16 | 16 | / | / | 13.5 | M8 | 6 | / | / | 22 | 8 | / | / | / | / | / | / | / | 25 | 13 |
 |
| S20-5-B | Carbon Steel | 5 | 36 | 16 | 16 | / | / | 13.5 | M8 | 6 | / | / | 22 | 8 | / | / | / | / | / | / | / | 25 | 13 |
|
| S20-5-S | Carbon Steel | 5 | 36 | 16 | 16 | / | / | 13.5 | M8 | 6 | / | / | 22 | 8 | / | / | / | / | / | / | / | 25 | 13 |
|
| S20-4-B | Carbon Steel | 4 | 30.5 | 12 | 12 | / | / | 10 | M6 | 4.5 | / | / | 16.5 | 6 | / | / | / | / | / | / | / | 13 | 6 | |
| S20-4-S | Carbon Steel | 4 | 30.5 | 12 | 12 | / | / | 10 | M6 | 4.5 | / | / | 16.5 | 6 | / | / | / | / | / | / | / | 13 | 6 | |
| S20B-4 | SUS304 | 4 | 30.5 | 12 | 12 | / | / | 10 | M6 | 4.5 | / | / | 16.5 | 6 | / | / | / | / | / | / | / | 13 | 6 | |
| S20-8-B | Carbon Steel | 8 | 59 | 21 | 21 | / | / | 20.5 | M12 | 9 | / | / | 33 | 12 | / | / | / | / | / | / | / | 23 | 45 | |
| S20-8-S | Carbon Steel | 8 | 59 | 21 | 21 | / | / | 20.5 | M12 | 9 | / | / | 33 | 12 | / | / | / | / | / | / | / | 23 | 45 | |
| S20B-8 | SUS304 | 8 | 59 | 21 | 21 | / | / | 20.5 | M12 | 9 | / | / | 33 | 12 | / | / | / | / | / | / | / | 23 | 45 |
characteristic
S:Carbon steel with zinc plated finish
B:Carbon steel withblack oxide finish
with handle and locking nut
Available services
1. Non-standard, Length can be customized; 2. Optional screws; 3. Ultrasonic cleaning and dust-free packaging.
